ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901620

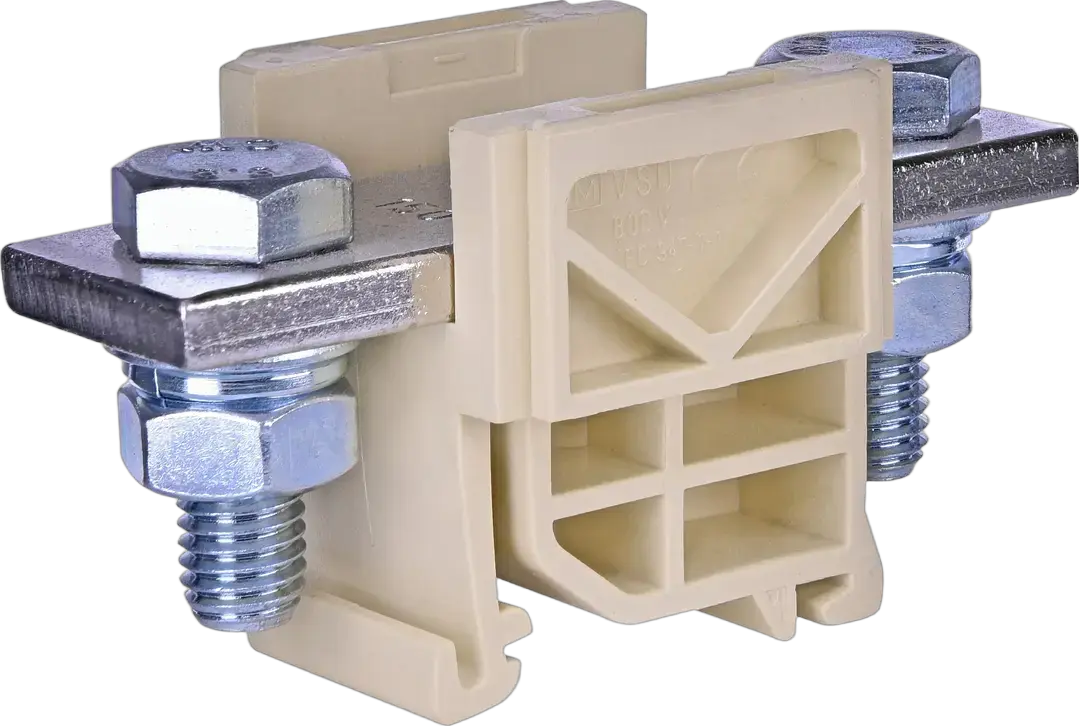

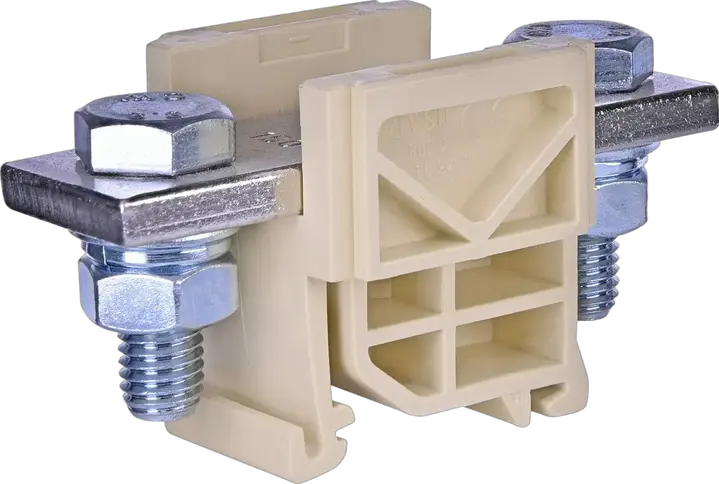

Vaizdas VSU 150

VSU 150 Elektromontažiniai gnybtai

ETI kodas:: 003901620
Vardinė įtampa AC (V):: 1000 V
Vardinė įtampa DC (V):: 1000 V
Katalogo grupė:: SM Sarindoti terminals
Montavimo būdas:: TH 35
Tipas:: SM Line-up terminals
Lygis:: Viens
Spalva:: Bēšs
Nominalus skerspjūvis:: 150 mm²
Max srovė vardinio skerspjūvio (mm2):: 309 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 150 mm²
Kryžminis sujungimas:: ✗
Reikalingas užbaigimas:: ✗
Funkcija:: High current line-up terminal VSU

Produktas

Svoris: 0,22 kg
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895800460
Basic packaging weight: 1 kg
Basic packaging volume: 1 dm³

Transporto pakuotė

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3831012300324
Transport packaging weight: 2,2 kg
Transport packaging volume: 2,4 dm³
Pallet quantity: 3 640 pcs
Customs tariff: 85369010

Width: 42 mm
Material insulation body: Thermoplastic
Rated current In: 309 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Screw connection
Rated voltage: 1 000 V
Colour: Beige
Height: 48 mm
Connectable conductor cross section solid-core(Min): 2,5 mm²
Connectable conductor cross section solid-core(Max): 150 mm²

ETIM klasifikacija – 9.0 versija
