ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901585

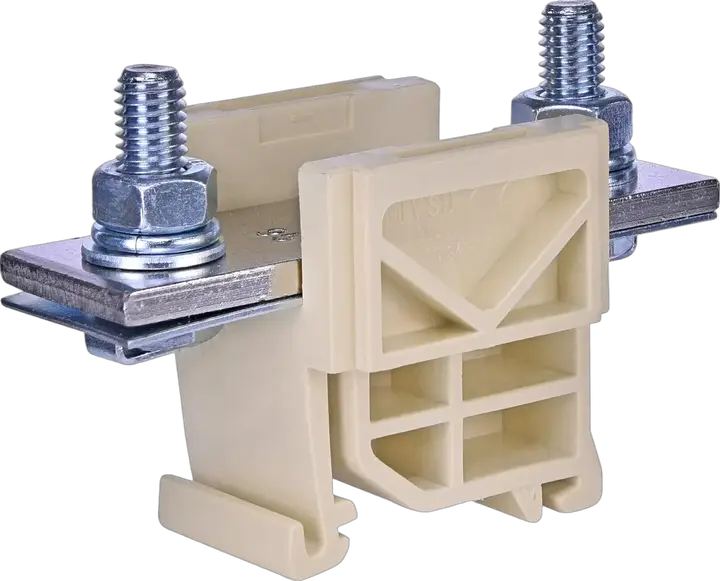

Vaizdas VSU 95

VSU 95 Elektromontažiniai gnybtai

ETI kodas:: 003901585
Vardinė įtampa AC (V):: 1000 V
Vardinė įtampa DC (V):: 1000 V
Katalogo grupė:: SM Sarindoti terminals
Tipas:: SM Line-up terminals
Lygis:: Viens
Nominalus skerspjūvis:: 95 mm²
Max srovė vardinio skerspjūvio (mm2):: 232 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 95 mm²
Kryžminis sujungimas:: ✓
Reikalingas užbaigimas:: ✗
Funkcija:: High current line-up terminal VSU

Produktas

EAN code for a single product: 3838400082855
Svoris: 0,165 kg
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3831012300300
Transport packaging weight: 1,651 kg
Transport packaging volume: 2,36 dm³
Pallet quantity: 4 850 pcs
Customs tariff: 85369010

Rated voltage: 1 000 V
Colour: Other
Connectable conductor cross section solid-core(Min): 95 mm²
Connectable conductor cross section solid-core(Max): 95 mm²

ETIM klasifikacija – 9.0 versija
