ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901040

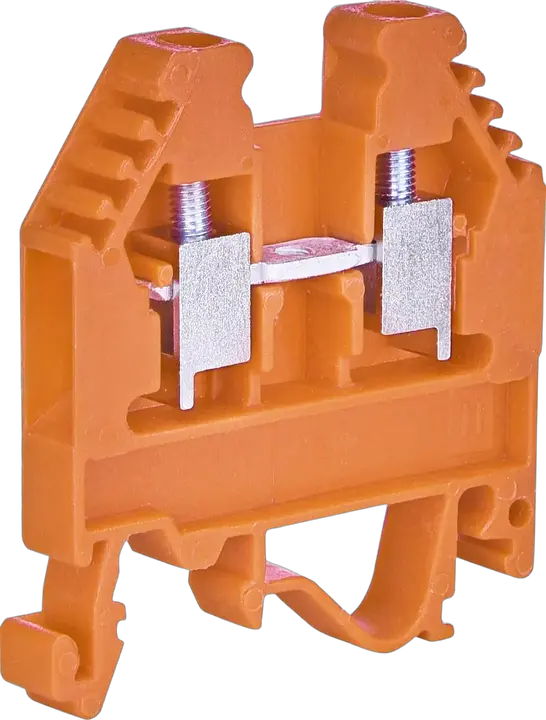

Vaizdas VS 4 PA O

VS 4 PA O Elektromont. gnybtų priedai

ETI kodas:: 003901040
Vardinė įtampa AC (V):: 660 V
Vardinė įtampa DC (V):: 660 V
Katalogo grupė:: SM Sarindoti terminals
Montavimo būdas:: TH 35
Tipas:: SM Line-up terminals
Lygis:: Viens
Spalva:: Oranžs
Nominalus skerspjūvis:: 4 mm²
Max srovė vardinio skerspjūvio (mm2):: 32 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 15-6 mm²
Kryžminis sujungimas:: ✓
Reikalingas užbaigimas:: ✓
Funkcija:: Line-up terminal VS

Produktas

EAN code for a single product: 3838400080714
Svoris: 8,82 g
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 100 pcs
EAN code for a transport packaging: 3831012326003
Transport packaging weight: 0,882 kg
Transport packaging volume: 1,44 dm³
Pallet quantity: 90 700 pcs
Customs tariff: 85369010

Width: 6 mm
Material insulation body: Thermoplastic
Rated current In: 32 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Clip connection
Closing plate required: ✓
Rated voltage: 660 V
Colour: Orange
Height: 44 mm
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section solid-core(Max): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²

ETIM klasifikacija – 9.0 versija
