ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901068

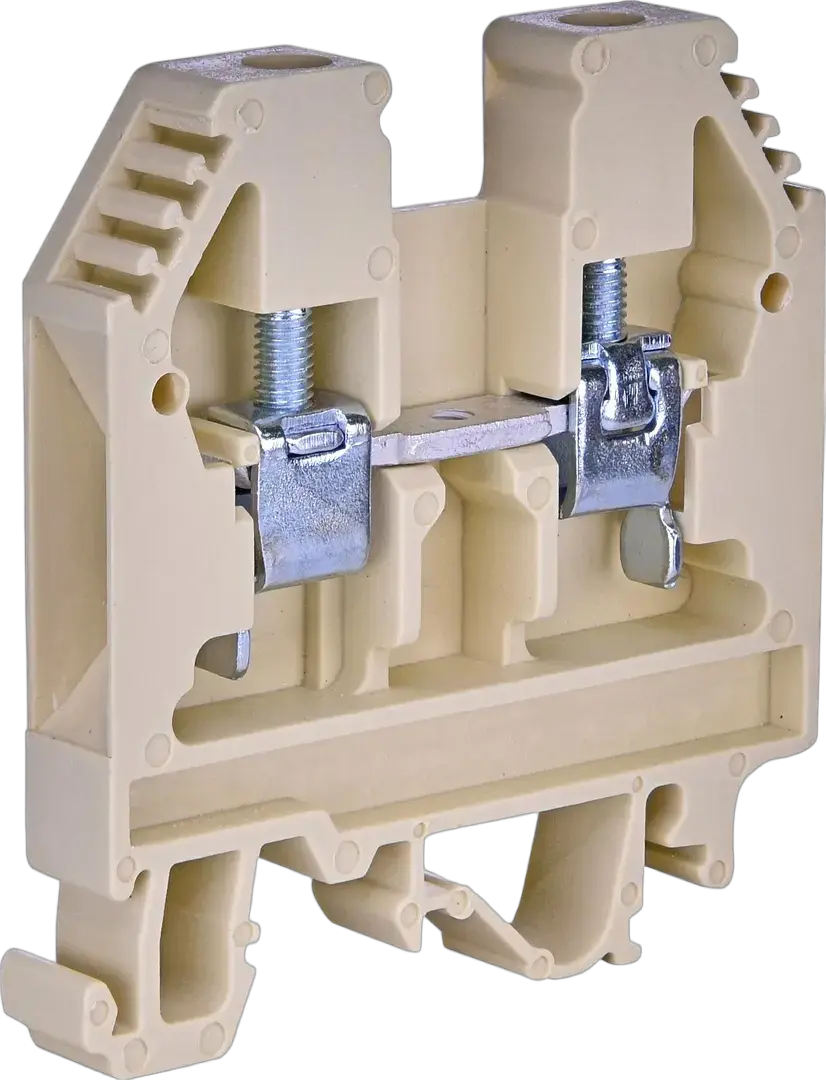

Vaizdas VS 6 PA

VS 6 PA Elektromontažiniai gnybtai

ETI kodas:: 003901068
Vardinė įtampa AC (V):: 660 V
Vardinė įtampa DC (V):: 660 V
Katalogo grupė:: SM Sarindoti terminals
Montavimo būdas:: TH 35
Tipas:: SM Line-up terminals
Lygis:: Viens
Spalva:: Bēšs
Nominalus skerspjūvis:: 6 mm²
Max srovė vardinio skerspjūvio (mm2):: 41 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 15-10 mm²
Kryžminis sujungimas:: ✓
Reikalingas užbaigimas:: ✓
Funkcija:: Line-up terminal VS

Produktas

EAN code for a single product: 3838400080875
Svoris: 0,018 kg
Net width: 8 mm
Net height: 56 mm
Net depth: 55 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3831012323781
Transport packaging weight: 0,899 kg
Transport packaging volume: 1,518 dm³
Pallet quantity: 44 500 pcs
Customs tariff: 85369010

Width: 8 mm
Material insulation body: Thermoplastic
Rated current In: 41 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Clip connection
Closing plate required: ✓
Rated voltage: 660 V
Colour: Beige
Height: 56 mm
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 2,5 mm²
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 6 mm²

ETIM klasifikacija – 9.0 versija
