ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901539

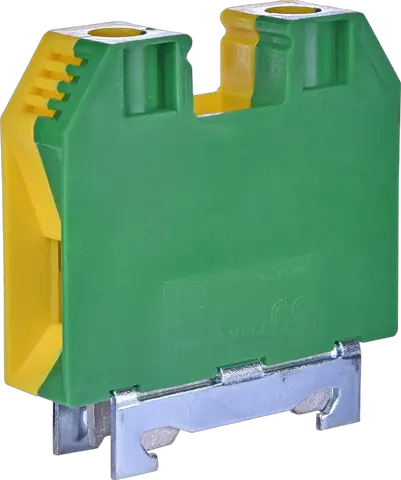

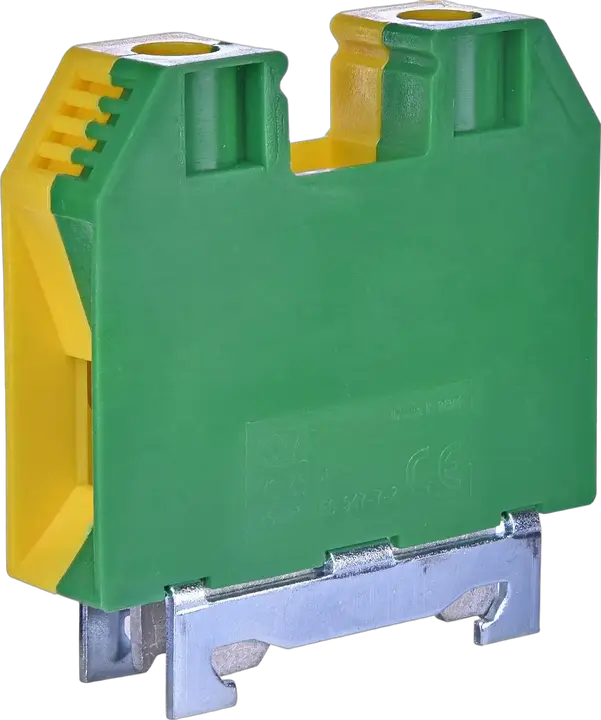

Vaizdas VS 35 PE

VS 35 PE Elektromontažiniai gnybtai

ETI kodas:: 003901539
Katalogo grupė:: SM Sarindoti terminals
Montavimo būdas:: TH 35
Tipas:: SM Line-up terminals
Lygis:: Viens
Spalva:: Zaļš, Dzeltens
Nominalus skerspjūvis:: 35 mm²
Max srovė vardinio skerspjūvio (mm2):: 95 mm²
Kryžminis sujungimas:: ✗
Reikalingas užbaigimas:: ✗
Funkcija:: Ground terminal block VS PE

Produktas

EAN code for a single product: 3838400082756
Svoris: 0,096 kg
Net width: 16 mm
Net height: 67 mm
Net depth: 64,5 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 20 pcs
EAN code for a transport packaging: 3831012325037
Transport packaging weight: 1,912 kg
Transport packaging volume: 1,79 dm³
Pallet quantity: 8 360 pcs
Customs tariff: 85369010

Width: 16 mm
Material insulation body: Thermoplastic
Rated current In: 95 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Clip connection
Colour: Green/yellow
Height: 67 mm
Connectable conductor cross section solid-core(Min): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 10 mm²
Connectable conductor cross section solid-core(Max): 35 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 35 mm²

ETIM klasifikacija – 9.0 versija
