ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901518

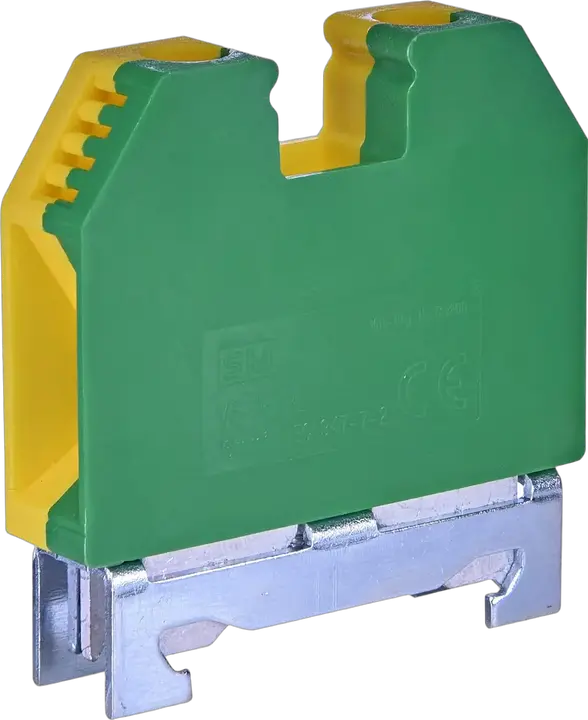

Vaizdas VS 16 PE

VS 16 PE Elektromontažiniai gnybtai

ETI kodas:: 003901518
Katalogo grupė:: SM Sarindoti terminals
Montavimo būdas:: TH 35
Tipas:: SM Line-up terminals
Lygis:: Viens
Spalva:: Zaļš, Dzeltens
Nominalus skerspjūvis:: 16 mm²
Max srovė vardinio skerspjūvio (mm2):: 70 mm²
Kryžminis sujungimas:: ✗
Reikalingas užbaigimas:: ✗
Funkcija:: Ground terminal block VS PE

Produktas

EAN code for a single product: 3838400082732
Svoris: 0,05 kg
Net width: 12 mm
Net height: 55 mm
Net depth: 53 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3831012325020
Transport packaging weight: 2,478 kg
Transport packaging volume: 2,1 dm³
Pallet quantity: 16 150 pcs
Customs tariff: 85369010

Width: 12 mm
Material insulation body: Thermoplastic
Rated current In: 70 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Clip connection
Colour: Green/yellow
Height: 55 mm
Connectable conductor cross section solid-core(Min): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 6 mm²
Connectable conductor cross section solid-core(Max): 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 16 mm²

ETIM klasifikacija – 9.0 versija
