ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901302

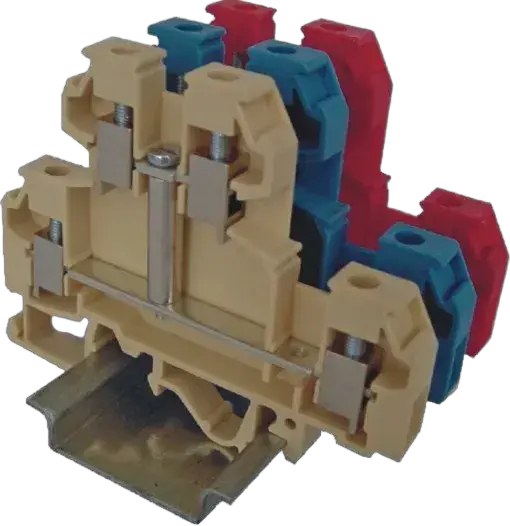

Vaizdas VS 4 NAI +

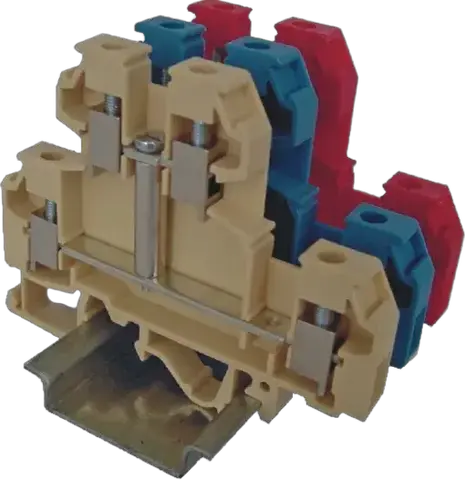

VS 4 NAI + Elektromontažiniai gnybtai

ETI kodas:: 003901302
Vardinė įtampa AC (V):: 440 V
Vardinė įtampa DC (V):: 440 V
Katalogo grupė:: SM Sarindoti terminals
Montavimo būdas:: TH 35
Tipas:: SM Line-up terminals
Lygis:: Dubults
Nominalus skerspjūvis:: 4 mm²
Max srovė vardinio skerspjūvio (mm2):: 32 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 3-6 mm²
Kryžminis sujungimas:: ✓
Reikalingas užbaigimas:: ✓
Funkcija:: Double level line-up terminal VS NAI

Produktas

EAN code for a single product: 3838400082176
Svoris: 0,021 kg
Net width: 6 mm
Net height: 54,5 mm
Net depth: 69,5 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3831012325396
Transport packaging weight: 1,044 kg
Transport packaging volume: 1,518 dm³
Pallet quantity: 38 300 pcs
Customs tariff: 85369010

Width: 6 mm
Material insulation body: Thermoplastic
Rated current In: 32 A
Mounting method: DIN rail (top hat rail) 35 mm
Basic colour: Red
Number of potentials: 1
Type of electrical connection 1: Clip connection
Closing plate required: ✓
Rated voltage: 440 V
Height: 54,5 mm
Connectable conductor cross section solid-core(Min): 0,3 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,3 mm²
Connectable conductor cross section solid-core(Max): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²

ETIM klasifikacija – 9.0 versija
