ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901244

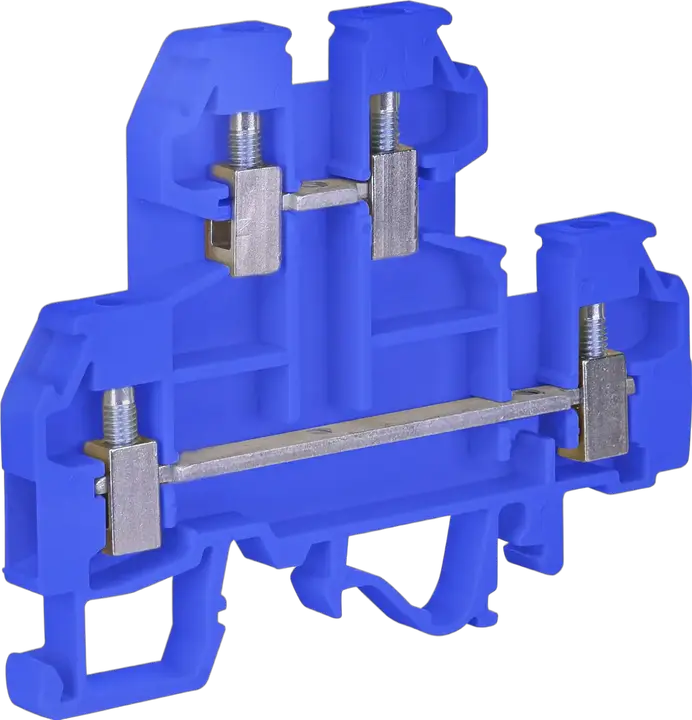

Vaizdas VS 2,5 NA N

VS 2,5 NA N Elektromontažiniai gnybtai

ETI kodas:: 003901244
Katalogo grupė:: SM Sarindoti terminals
Montavimo būdas:: TH 35
Tipas:: SM Line-up terminals
Lygis:: Dubults
Nominalus skerspjūvis:: 5 mm²
Max srovė vardinio skerspjūvio (mm2):: 24 mm²
Kryžminis sujungimas:: ✓
Reikalingas užbaigimas:: ✓
Funkcija:: Double level line-up terminal VS NA

Produktas

EAN code for a single product: 3838400081995
Svoris: 0,015 kg
Net width: 5 mm
Net height: 54,5 mm
Net depth: 69,5 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3831012325075
Transport packaging weight: 0,726 kg
Transport packaging volume: 1,215 dm³
Pallet quantity: 55 100 pcs
Customs tariff: 85369010

N function possible: ✓
Width: 5 mm
Material insulation body: Thermoplastic
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 35 mm
Basic colour: Blue
Number of potentials: 2
Type of electrical connection 1: Clip connection
Closing plate required: ✓
Rated voltage: 440 V
Height: 54,5 mm
Connectable conductor cross section solid-core(Min): 0,3 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,3 mm²
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 2,5 mm²

ETIM klasifikacija – 9.0 versija
