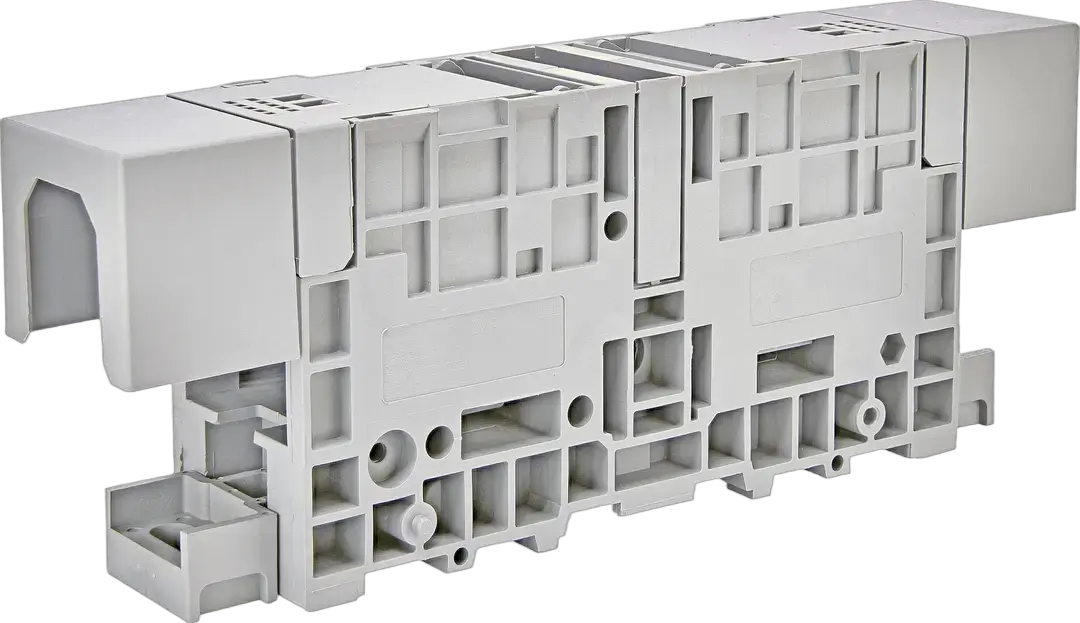

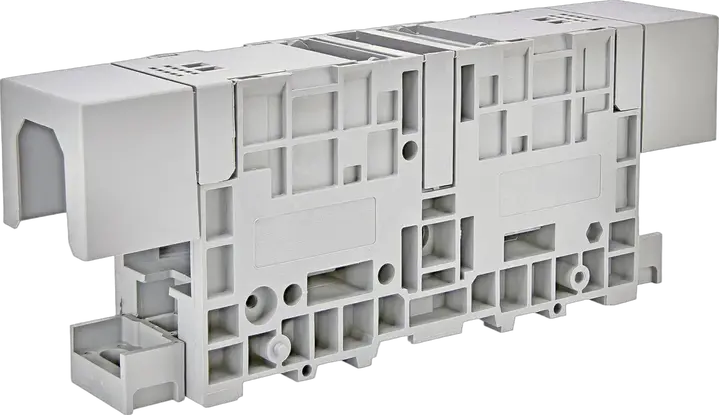

ESC-GPM.150/FIX Elektromontažiniai gnybtai

ETI kodas:: 003903216
Vardinė įtampa AC (V):: 1000 V
Vardinė įtampa DC (V):: 1000 V
Katalogo grupė:: ES Skrūvju tipa spaiļu bloki
Montavimo būdas:: Base plate mounting
Tipas:: ES Screw Type Terminal Blocks
Lygis:: Viens
Spalva:: Pelēks
Nominalus skerspjūvis:: 150 mm²
Nominali impulsų atsparumo įtampa Uimp (kV):: 12 kV
Max srovė vardinio skerspjūvio (mm2):: 309 mm²
Max srovė su Max skerspjūvio (mm2):: 440 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 150 mm²
Kryžminis sujungimas:: ✗
Reikalingas užbaigimas:: ✗
Funkcija:: ES Screw Type Terminal Blocks

Priedai

Produktas

EAN code for a single product: 3838895860440
Svoris: 0,348 kg
Net width: 42 mm
Net height: 200 mm
Net depth: 75,5 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 6 pcs
EAN code for a transport packaging: 3838895830658
Transport packaging weight: 2,259 kg
Transport Packaging Dimensions Height: 140 mm
Transport Packaging Dimensions Width: 105 mm
Transport Packaging Dimensions Depth: 182 mm
Transport packaging volume: 2,675 dm³
Pallet quantity: 1 590 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': ✓
Width: 42 mm
Material insulation body: Thermoplastic
Rated current In: 440 A
Mounting method: Direct mounting
Number of levels: 1
Type of electrical connection 1: Bolt connection
Number of clamp positions per level: 2
Type of electrical connection 2: Bolt connection
Rated voltage: 1 000 V
Colour: Grey
Height: 76 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section fine-strand with cable end sleeve(Min): 35 mm²
Operating temperature(Min): −40 °C
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 240 mm²

ETIM klasifikacija – 9.0 versija
