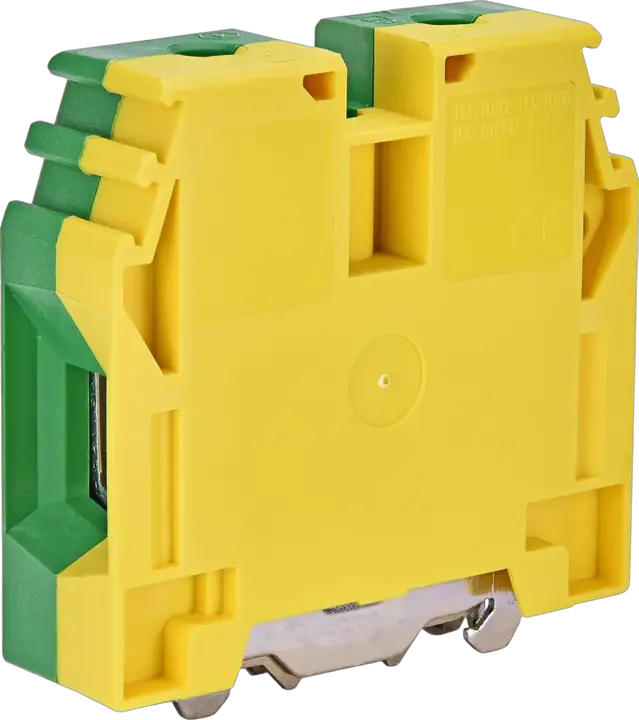

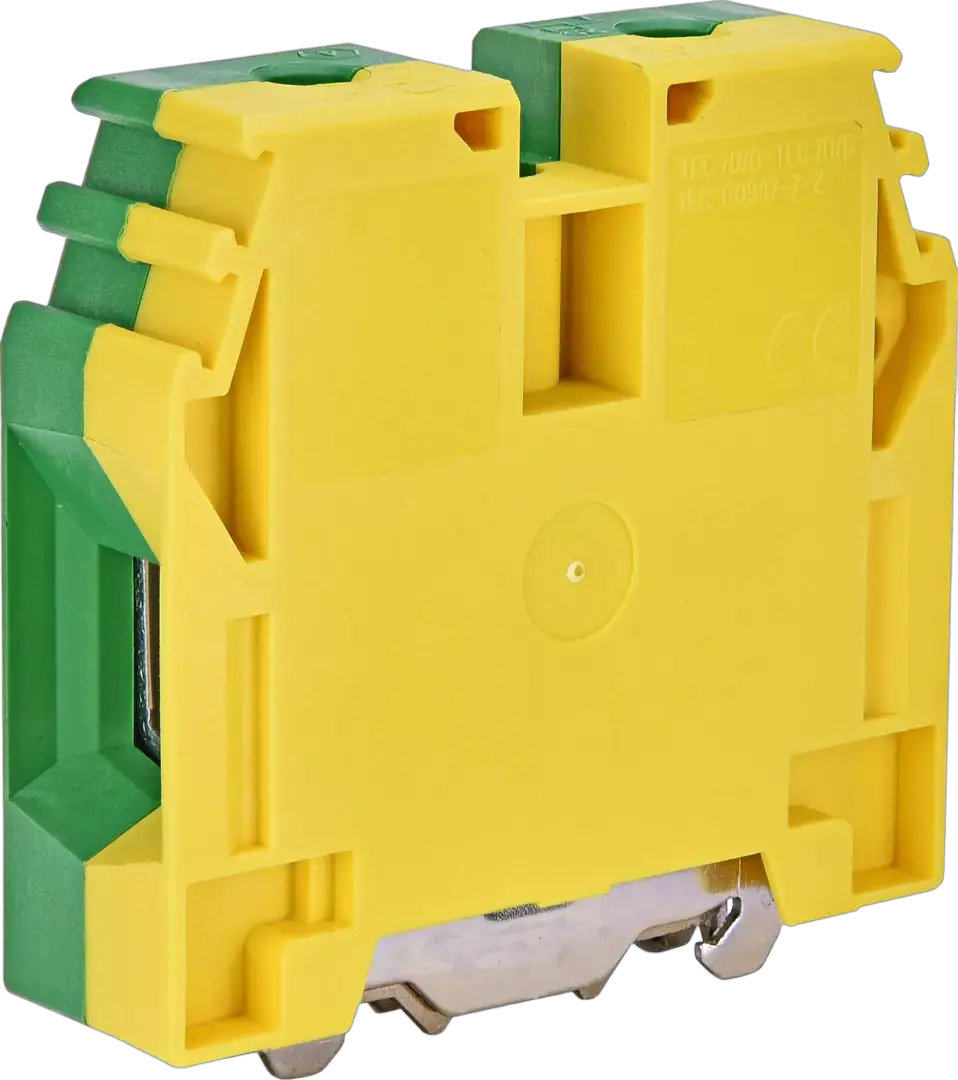

ESC-TEC.70/O Įžeminimo jungtis

ETI kodas:: 003903074
Katalogo grupė:: ES Skrūvju tipa spaiļu bloki
Montavimo būdas:: TH 35
Tipas:: ES Screw Type Terminal Blocks
Lygis:: Viens
Spalva:: Dzeltens, Zaļš
Nominalus skerspjūvis:: 70 mm²
Nominali impulsų atsparumo įtampa Uimp (kV):: 8 kV
Max srovė vardinio skerspjūvio (mm2):: 192 mm²
Kryžminis sujungimas:: ✗
Reikalingas užbaigimas:: ✗

Priedai

Produktas

EAN code for a single product: 3838895861331
Svoris: 36 g
Net width: 20,5 mm
Net height: 70 mm
Net depth: 70,68 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 25 pcs
EAN code for a transport packaging: 3838895788706
Transport packaging weight: 3,625 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 3 900 pcs
Customs tariff: 85369010

Width: 20,5 mm
Material insulation body: Thermoplastic
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Type of electrical connection 2: Screw connection
Colour: Green/yellow
Height: 74 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 10 mm²
Connectable conductor cross section multi-wired(Min): 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 10 mm²
Operating temperature(Min): −40 °C
Connectable conductor cross section solid-core(Max): 95 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 95 mm²
Connectable conductor cross section multi-wired(Max): 95 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 71 mm²

ETIM klasifikacija – 9.0 versija
