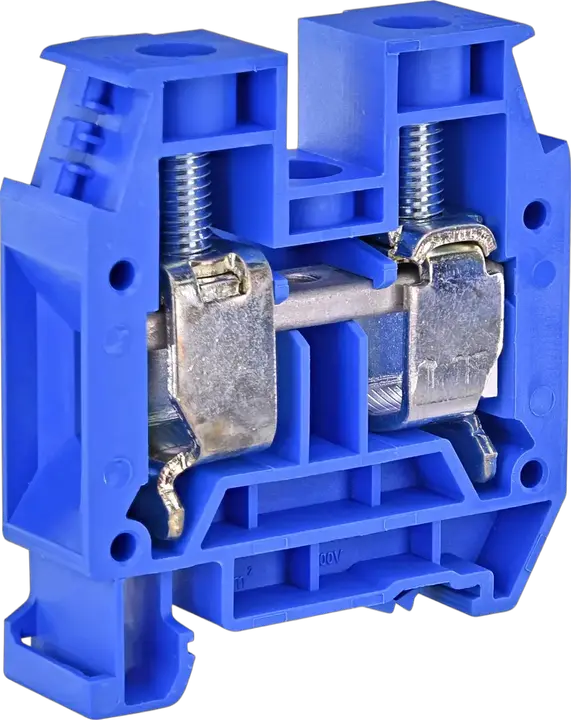

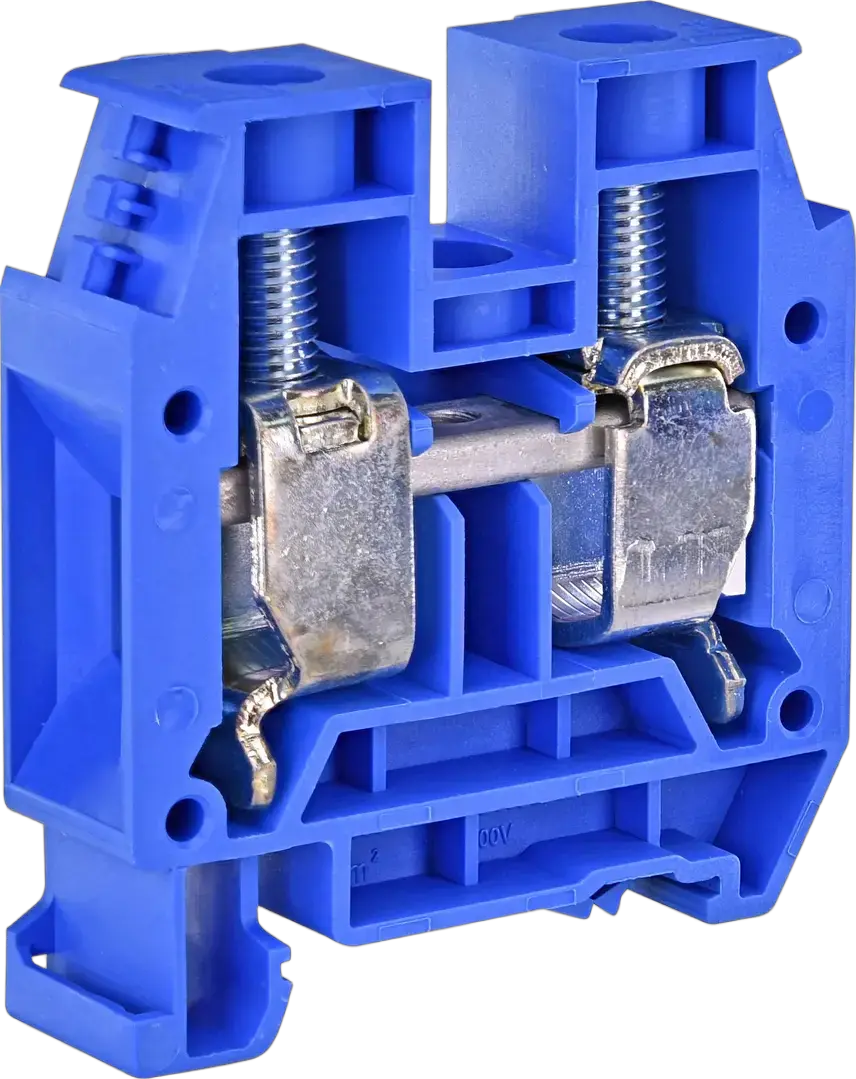

ESC-CBC.35B Neutralus gnybtas

ETI kodas:: 003903049
Vardinė įtampa AC (V):: 1000 V
Vardinė įtampa DC (V):: 1000 V
Katalogo grupė:: ES Skrūvju tipa spaiļu bloki
Montavimo būdas:: TH 35
Tipas:: ES Screw Type Terminal Blocks
Lygis:: Viens
Spalva:: Zils
Nominalus skerspjūvis:: 35 mm²
Nominali impulsų atsparumo įtampa Uimp (kV):: 12 kV
Max srovė vardinio skerspjūvio (mm2):: 101 mm²
Max srovė su Max skerspjūvio (mm2):: 160 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 2.5-50 mm²
Kryžminis sujungimas:: ✓
Reikalingas užbaigimas:: ✓

Priedai

Produktas

EAN code for a single product: 3838895860969
Svoris: 58 g
Net width: 16 mm
Net height: 56 mm
Net depth: 62 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3838895788430
Transport packaging weight: 2,98 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 7 800 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': ✓
Material insulation body: Thermoplastic
Rated current In: 160 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Thickness: 1,5 mm
End plate model: ✓
Number of clamp positions per level: 2
Closing plate required: ✓
Type of electrical connection 2: Screw connection
Rated voltage: 1 000 V
Colour: Blue
Snap in: ✓
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 2,5 mm²
Connectable conductor cross section multi-wired(Min): 2,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 2,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 2,5 mm²
Operating temperature(Min): −40 °C
Connectable conductor cross section solid-core(Max): 50 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 50 mm²
Connectable conductor cross section multi-wired(Max): 50 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 35 mm²
