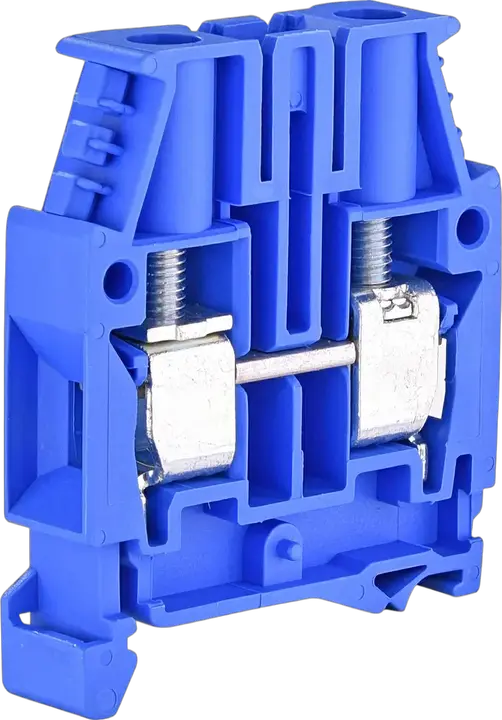

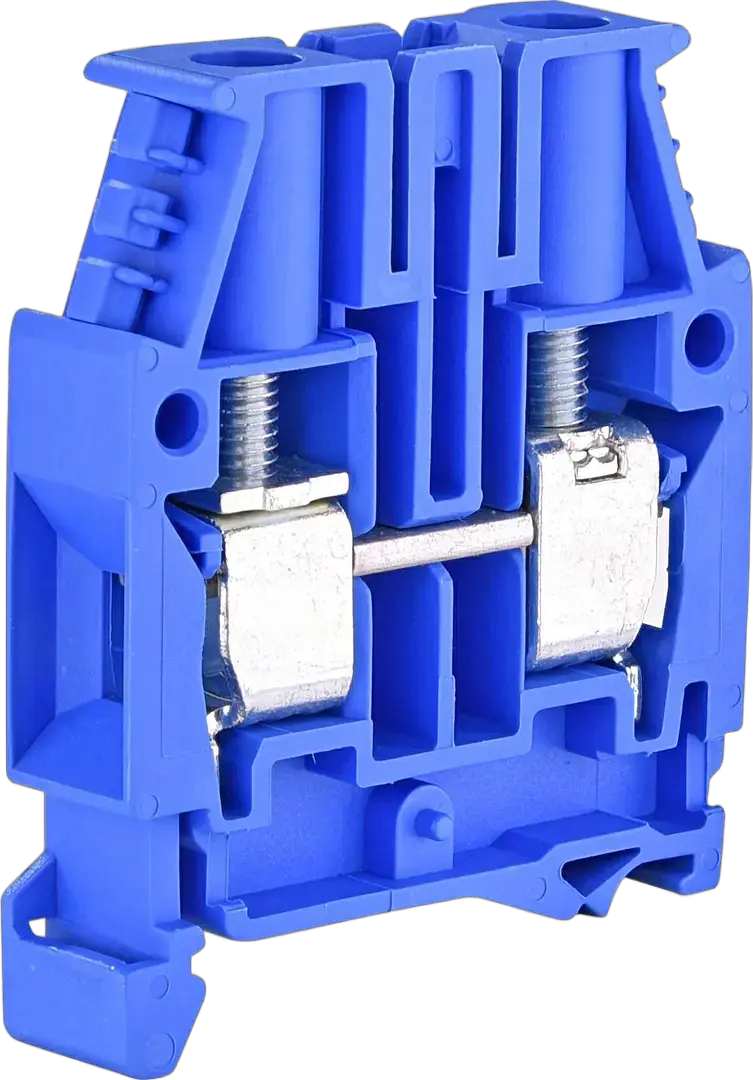

ESC-CBC.10B Neutralus gnybtas

ETI kodas:: 003903047
Vardinė įtampa AC (V):: 1000 V
Vardinė įtampa DC (V):: 1000 V
Katalogo grupė:: ES Skrūvju tipa spaiļu bloki
Montavimo būdas:: TH 35
Tipas:: ES Screw Type Terminal Blocks
Lygis:: Viens
Spalva:: Zils
Nominalus skerspjūvis:: 10 mm²
Nominali impulsų atsparumo įtampa Uimp (kV):: 12 kV
Max srovė vardinio skerspjūvio (mm2):: 57 mm²
Max srovė su Max skerspjūvio (mm2):: 85 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 1.5-16 mm²
Kryžminis sujungimas:: ✓
Reikalingas užbaigimas:: ✓

Priedai

Produktas

EAN code for a single product: 3838895860945
Svoris: 18,8 g
Net width: 10 mm
Net height: 42,5 mm
Net depth: 50,5 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 100 pcs
EAN code for a transport packaging: 3838895788416
Transport packaging weight: 2,016 kg
Transport Packaging Dimensions Height: 50 mm
Transport Packaging Dimensions Width: 300 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 3,15 dm³
Pallet quantity: 24 000 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': ✓
Width: 10 mm
Material insulation body: Thermoplastic
Rated current In: 85 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Closing plate required: ✓
Type of electrical connection 2: Screw connection
Rated voltage: 1 000 V
Colour: Blue
Height: 52 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section multi-wired(Min): 1,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Operating temperature(Min): −40 °C
Connectable conductor cross section solid-core(Max): 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 16 mm²
Connectable conductor cross section multi-wired(Max): 16 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 10 mm²
