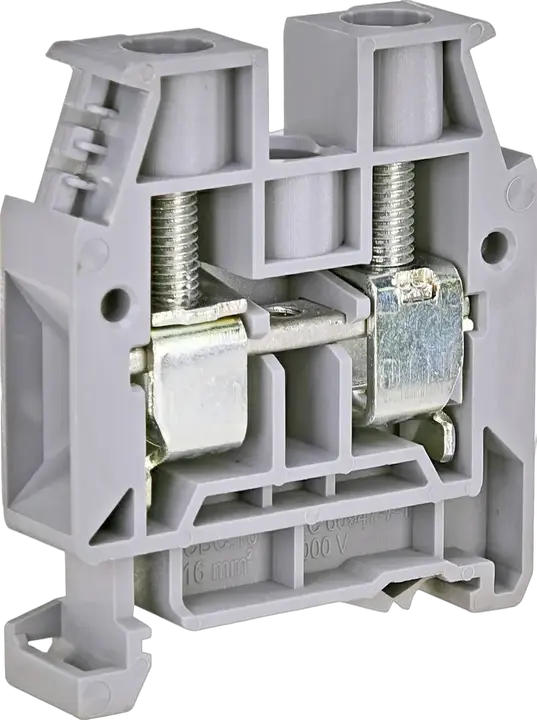

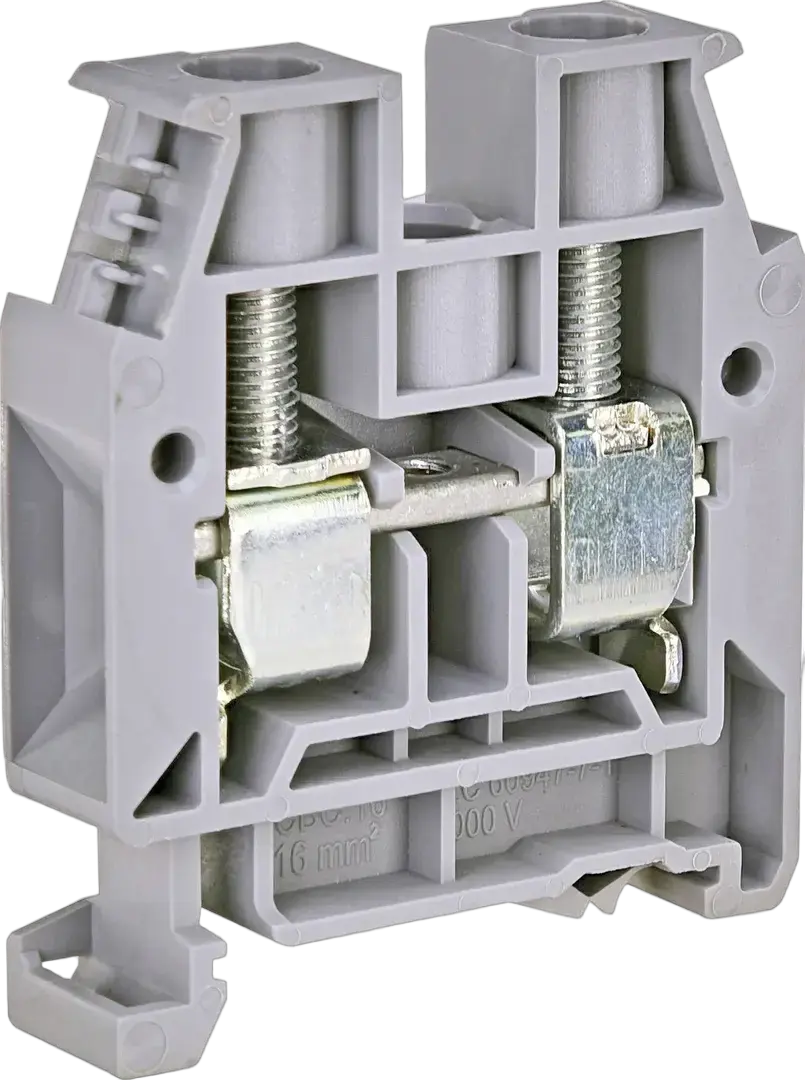

ESC-CBC.16 Elektromontažiniai gnybtai

ETI kodas:: 003903004
Vardinė įtampa AC (V):: 1000 V
Vardinė įtampa DC (V):: 1000 V
Katalogo grupė:: ES Skrūvju tipa spaiļu bloki
Montavimo būdas:: TH 35
Tipas:: ES Screw Type Terminal Blocks
Lygis:: Viens
Spalva:: Pelēks
Nominalus skerspjūvis:: 16 mm²
Nominali impulsų atsparumo įtampa Uimp (kV):: 12 kV
Max srovė vardinio skerspjūvio (mm2):: 76 mm²
Max srovė su Max skerspjūvio (mm2):: 114 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 1.5-25 mm²
Kryžminis sujungimas:: ✓
Reikalingas užbaigimas:: ✓

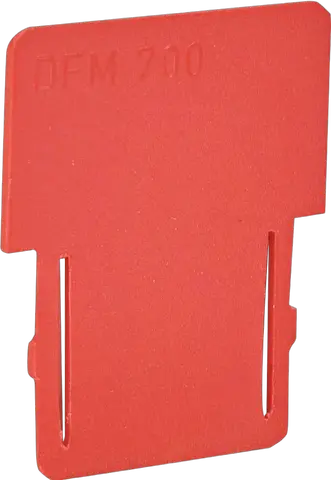

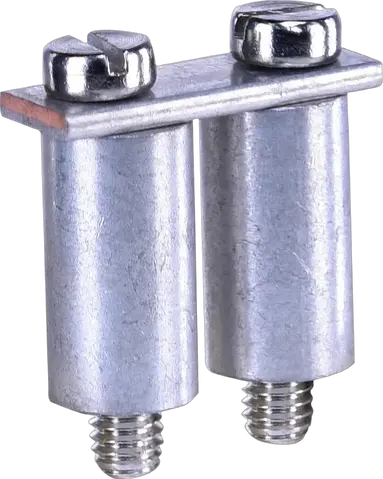

Priedai

Produktas

EAN code for a single product: 3838895859659
Svoris: 30,36 g
Net width: 12 mm
Net height: 46,5 mm
Net depth: 55 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3838895787945
Transport packaging weight: 1,512 kg
Transport Packaging Dimensions Height: 55 mm
Transport Packaging Dimensions Width: 240 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,98 dm³
Pallet quantity: 19 800 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': ✓
Width: 12 mm
Material insulation body: Thermoplastic
Rated current In: 95 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Closing plate required: ✓
Type of electrical connection 2: Screw connection
Rated voltage: 1 000 V
Colour: Grey
Height: 56 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section multi-wired(Min): 1,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Operating temperature(Min): −40 °C
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 16 mm²
