003901672

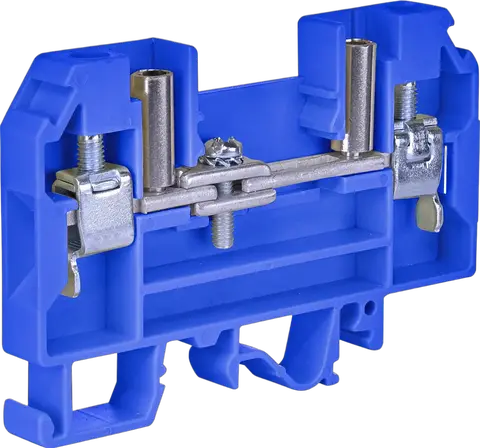

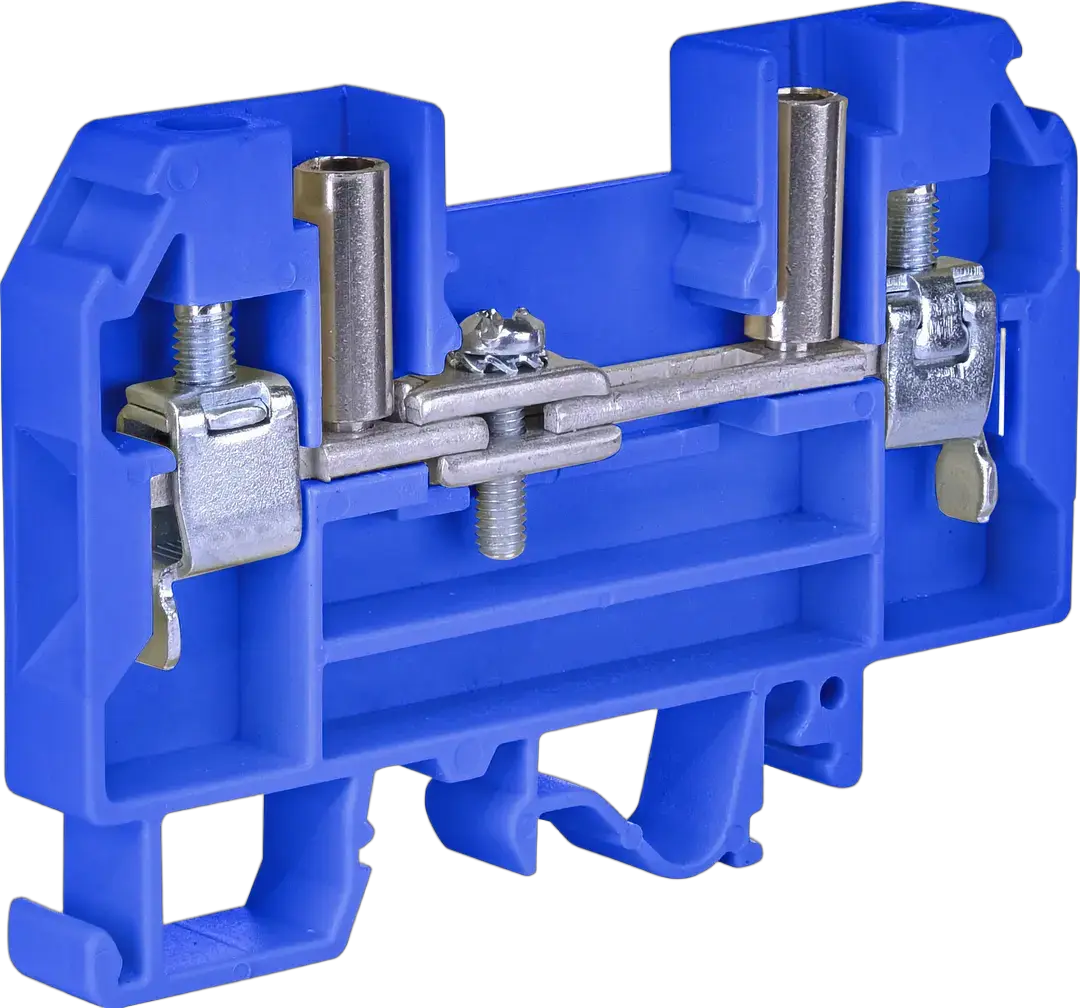

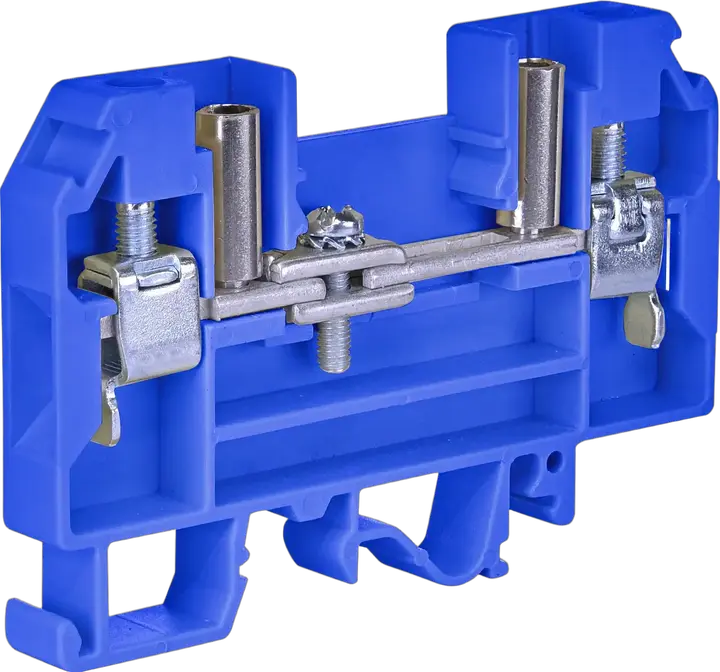

Vaizdas VSM 6 VNP N

VSM 6 VNP N Elektromontažiniai gnybtai

ETI kodas:: 003901672
Vardinė įtampa AC (V):: 600 V
Vardinė įtampa DC (V):: 600 V
Katalogo grupė:: SM Sarindoti terminals
Montavimo būdas:: TH 35
Tipas:: SM Line-up terminals
Lygis:: Viens
Spalva:: Bēšs
Nominalus skerspjūvis:: 6 mm²
Max srovė vardinio skerspjūvio (mm2):: 43 mm²
Kryžminis sujungimas:: ✓
Reikalingas užbaigimas:: ✓
Funkcija:: Line-up terminal VSM

Techninių duomenų katalogas

Produktas

Svoris: 0,026 kg
Stock unit of measure: pcs

Transporto pakuotė

Customs tariff: 85369010

Width: 8 mm
Material insulation body: Thermoplastic
Rated current In: 43 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Clip connection
Closing plate required: ✓
Rated voltage: 600 V
Colour: Beige
Height: 48,1 mm
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 2,5 mm²
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 6 mm²

ETIM klasifikacija – 9.0 versija
