ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901361

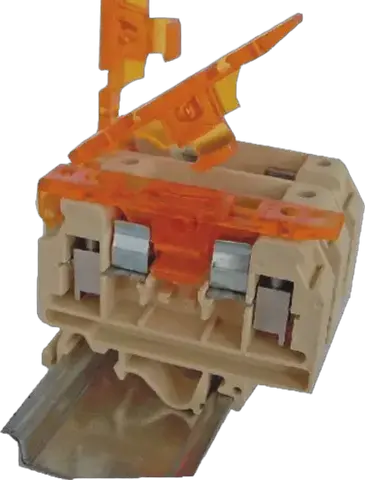

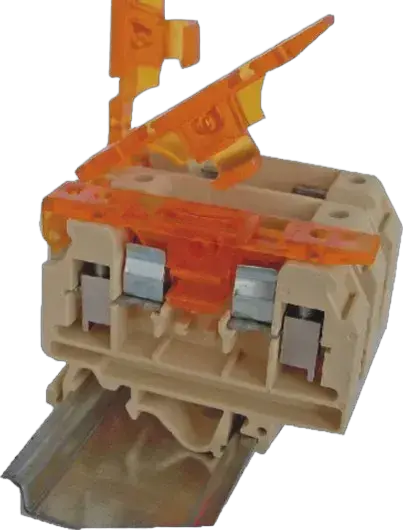

Vaizdas VSV 4 N

VSV 4 N Elektromontažiniai gnybtai

ETI kodas:: 003901361
Vardinė įtampa AC (V):: 440 V
Vardinė įtampa DC (V):: 440 V
Katalogo grupė:: SM Sarindoti terminals
Montavimo būdas:: TH 35
Tipas:: SM Line-up terminals
Lygis:: Viens
Spalva:: Zils
Nominalus skerspjūvis:: 4 mm²
Max srovė vardinio skerspjūvio (mm2):: 32 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 3-4 mm²
Kryžminis sujungimas:: ✗
Reikalingas užbaigimas:: ✓
Funkcija:: Line-up terminal with fuse holder VSV

Produktas

EAN code for a single product: 3838400082336
Svoris: 0,016 kg
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3831012326041
Transport packaging weight: 0,809 kg
Transport packaging volume: 1,7 dm³
Pallet quantity: 49 450 pcs
Customs tariff: 85369010

Width: 8 mm
Material insulation body: Thermoplastic
Rated current In: 6,3 A
Mounting method: DIN rail (top hat rail) 35 mm
Type of electrical connection 1: Clip connection
Closing plate required: ✓
Rated voltage: 440 V
Colour: Blue
Height: 55 mm
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,3 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²

ETIM klasifikacija – 9.0 versija
