ESC screw-type terminal blocks create a compact, colour-coded wiring row on any TH35 rail. Snap-on bridges, partitions, touch guards and universal SmartPrint tags let you route, common and label conductors from 0.2 mm² up to 240 mm²—fast, finger-safe and fully modular.

003901322

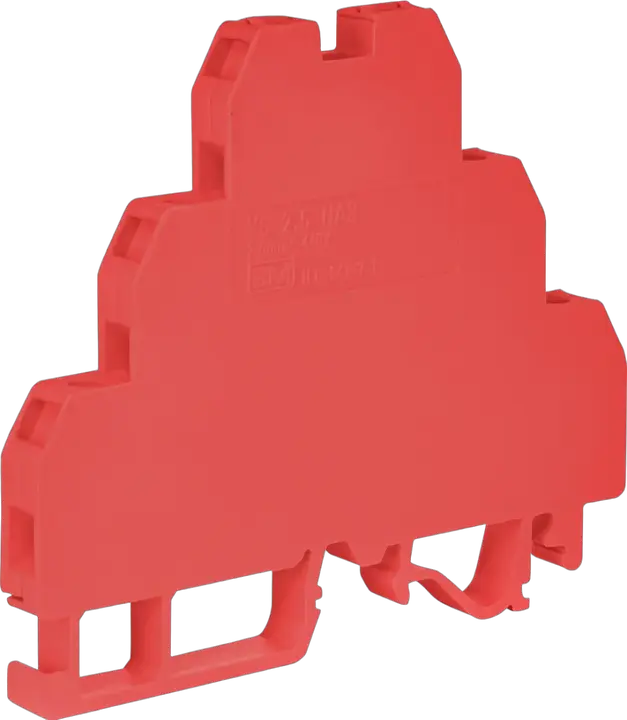

Vaizdas VS 2,5 NA 3 +

VS 2,5 NA 3 + Elektromontažiniai gnybtai

ETI kodas:: 003901322
Vardinė įtampa AC (V):: 440 V
Vardinė įtampa DC (V):: 440 V
Katalogo grupė:: SM Sarindoti terminals
Montavimo būdas:: TH 35
Tipas:: SM Line-up terminals
Lygis:: Trīskāršs
Nominalus skerspjūvis:: 2.5 mm²
Max srovė vardinio skerspjūvio (mm2):: 24 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 3-4 mm²
Kryžminis sujungimas:: ✓
Reikalingas užbaigimas:: ✗
Funkcija:: Three level line-up terminal VS NA3

Produktas

EAN code for a single product: 3838400082237
Svoris: 0,026 kg
Net width: 6 mm
Net height: 65 mm
Net depth: 75,5 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 40 pcs
EAN code for a transport packaging: 3831012325389
Transport packaging weight: 1,044 kg
Transport packaging volume: 1,715 dm³
Pallet quantity: 30 640 pcs
Customs tariff: 85369010

Width: 6 mm
Material insulation body: Thermoplastic
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 35 mm
Basic colour: Red
Number of potentials: 3
Type of electrical connection 1: Clip connection
Closing plate required: ✓
Rated voltage: 440 V
Height: 65 mm
Connectable conductor cross section solid-core(Min): 0,3 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,3 mm²
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 2,5 mm²

ETIM klasifikacija – 9.0 versija
