Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921214

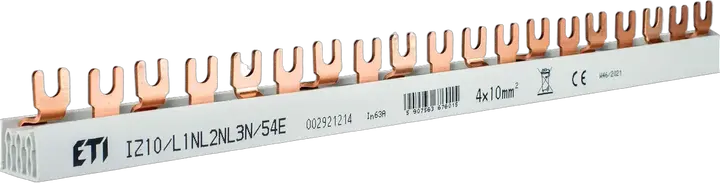

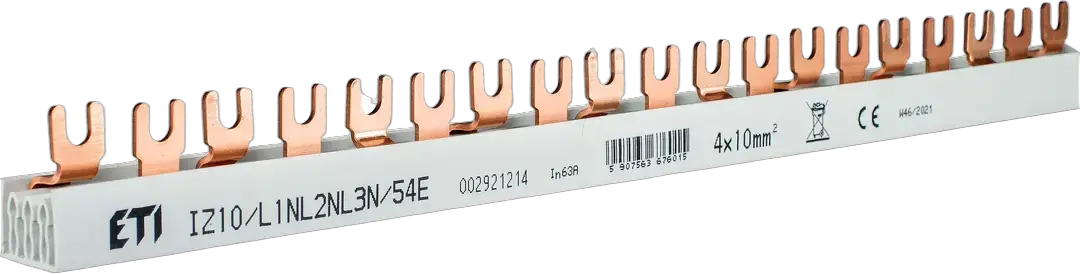

Vaizdas IZ10/L1NL2NL3N/54E

IZ10/L1NL2NL3N/54E Izoliuota šyna

ETI kodas:: 002921214
Naudojamas kartu su:: ETIMAT 6, SV, ETIMAT 10
Polių skaičius:: 3+N
Funkcija:: Section rails
Tipas:: FORK
Vardinė srovė (A):: 63 A
Nominalus skerspjūvis:: 10 mm²
Ilgis moduliais:: 1x54
Fazių skaičius:: 3
Įtampos tipas:: AC/DC
Vardinė įtampa AC (V):: 500 V
Vardinė įtampa DC (V):: 500 V
Priedų tipas:: Section rails

Techninių duomenų katalogas

Produktas

Svoris: 1 kg
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 5907563676015
Basic packaging weight: 0,6 kg
Basic packaging volume: 0,9 dm³

Transporto pakuotė

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 5907563676978
Transport packaging weight: 6 kg
Transport packaging volume: 9 dm³
Pallet quantity: 1 000 pcs
Customs tariff: 85389099

Can be cut to size: ✓
Cross section: 10 mm²
Suitable for devices with N-conductor: ✓
Number of phases: 3
Rated permanent current Iu: 63 A
Suitable for number of devices: 27
Module width: 17,8 mm
Number of poles: 4
Max. rated operation voltage Ue: 690 V
Insulated: ✓
Colour: Grey
Type of electric connection: Fork
Width in number of modular spacings: 54
