Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921213

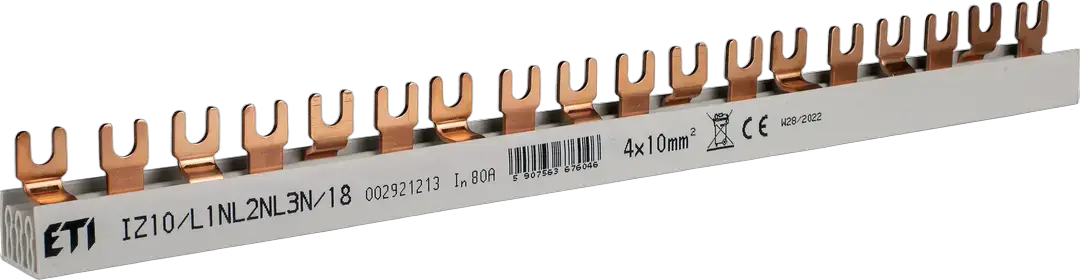

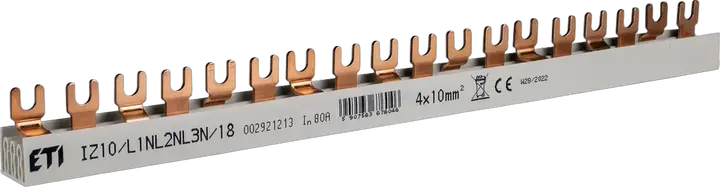

Vaizdas IZ10/L1NL2NL3N/18

IZ10/L1NL2NL3N/18 Izoliuota šyna

ETI kodas:: 002921213
Naudojamas kartu su:: ETIMAT 6, SV, ETIMAT 10
Tipas:: Fork Type
Polių skaičius:: 3+N
Funkcija:: Section rails
Tipas:: FORK
Vardinė srovė (A):: 63 A
Nominalus skerspjūvis:: 10 mm²
Ilgis moduliais:: 1x18
Fazių skaičius:: 3
Įtampos tipas:: AC/DC
Vardinė įtampa AC (V):: 500 V
Vardinė įtampa DC (V):: 500 V
Priedų tipas:: Section rails

Priedai

Produktas

Svoris: 0,21 kg
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 5907563676046
Basic packaging weight: 0,21 kg
Basic packaging volume: 0,25 dm³

Transporto pakuotė

Intermediate packaging quantity: 10 pcs
EAN code for a intermediate packaging: 5907563677005
Intermediate packaging weight: 2,1 kg
Transport packaging quantity: 120 pcs
EAN code for a transport packaging: 5907563670044
Transport packaging weight: 25,2 kg
Transport packaging volume: 30 dm³
Pallet quantity: 6 000 pcs
Customs tariff: 85389099

Can be cut to size: ✓
Cross section: 10 mm²
Suitable for devices with N-conductor: ✓
Number of phases: 3
Rated permanent current Iu: 63 A
Suitable for number of devices: 9
Module width: 17,8 mm
Number of poles: 4
Length: 320 mm
Max. rated operation voltage Ue: 690 V
Insulated: ✓
Colour: Grey
Type of electric connection: Fork
Width in number of modular spacings: 18

ETIM klasifikacija – 9.0 versija
