DIN rail distribution blocks EDB provide a safe and organized solution for connecting and distributing electrical power in low-voltage applications. These blocks are designed for mounting on standard DIN rails, ensuring compatibility with various electrical enclosures and panels. They feature a robust construction and offer numerous advantages for efficient and reliable power distribution.

001102312

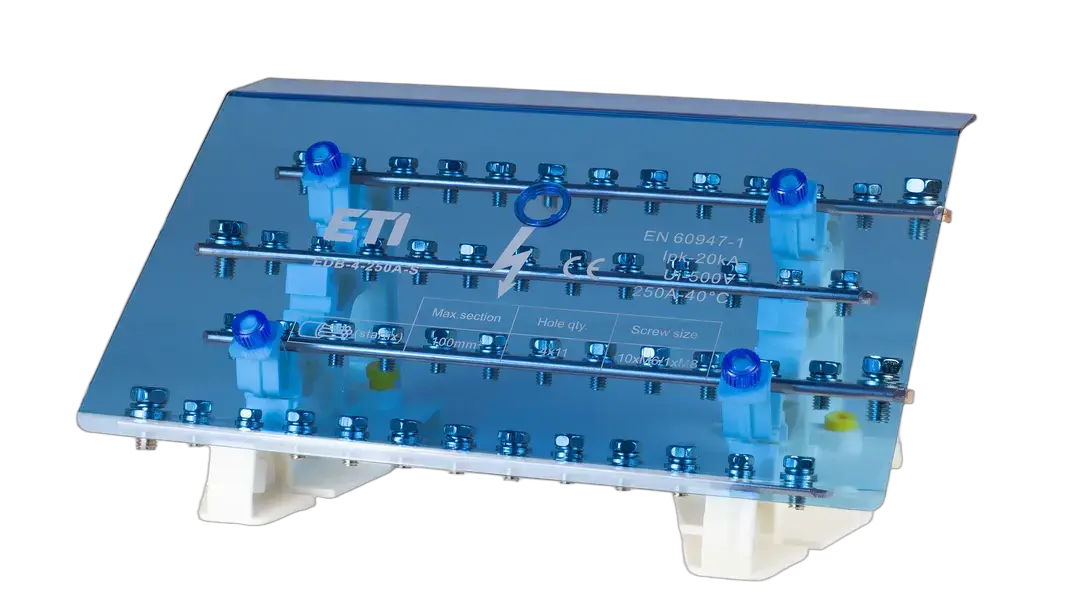

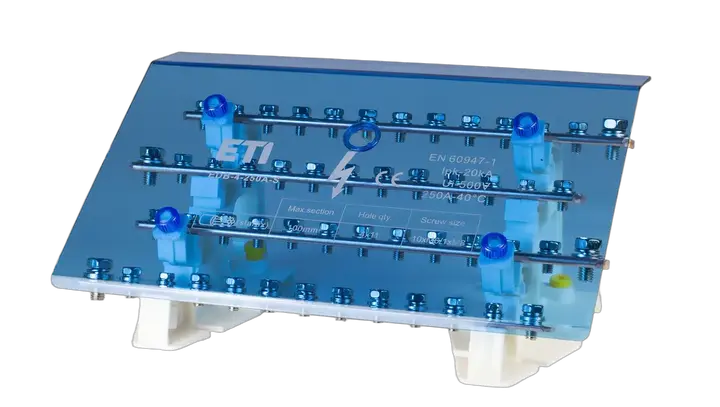

Vaizdas EDB-4-250A-S

EDB-4-250A-S Paskirstymo blokas

ETI kodas:: 001102312
Montavimo būdas:: TH 35
Vardinė srovė (A):: 250 A
Vardinė įtampa AC (V):: 400 V
Vardinė įtampa DC (V):: 400 V
Nominali izoliacijos įtampa (V):: 500 V
Trumpo atjungimo geba (kA):: 20 kA
Gnybtų skaičius:: 4x11
Aukštis (mm):: 122 mm
Plotis (mm):: 273 mm
Gylis (mm):: 170 mm
Korpuso medžiaga:: PA
Darbinė temperatūra (°C):: -30-110 °C

Produktas

Svoris: 1,32 kg
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400000347
Basic packaging weight: 1,6 kg
Basic packaging volume: 2,63 dm³

Transporto pakuotė

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838400000361
Transport packaging weight: 16 kg
Transport packaging volume: 65,45 dm³
Pallet quantity: 200 pcs
Customs tariff: 85369010

Width: 170 mm
Transparent: ✓
Material insulation body: Thermoplastic
Rated current In: 250 A
Mounting method: Other
Type of electrical connection 1: Screw connection
Number of poles: 4
Number of clamp positions per pole: 11
Depth: 170 mm
Rated voltage: 400 V
Colour: Other
Height: 122 mm
Connectable conductor cross section multi-wired(Max): 100 mm²

ETIM klasifikacija – 9.0 versija
