Residual Current Circuit Breakers (RCCBs) are crucial electrical safety devices that provide protection against electrical shocks and fires. They enhance safety for humans and animals, contributing to a higher level of fire safety. The use of RCCBs is highly recommended in areas with an increased risk of electrical shocks, such as bathrooms, humid and wet rooms, children's rooms, and workshops.

002061254

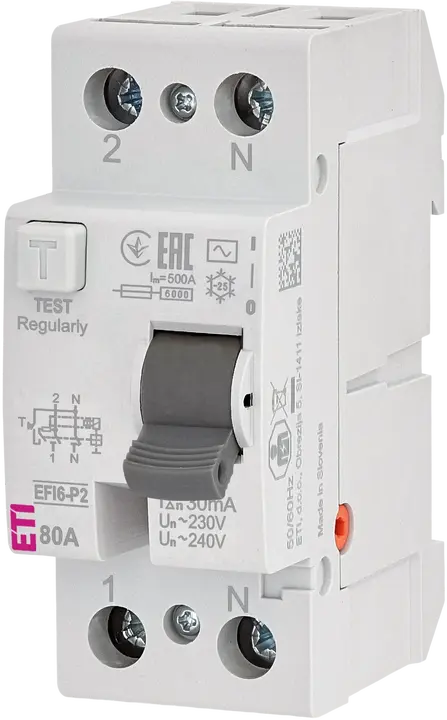

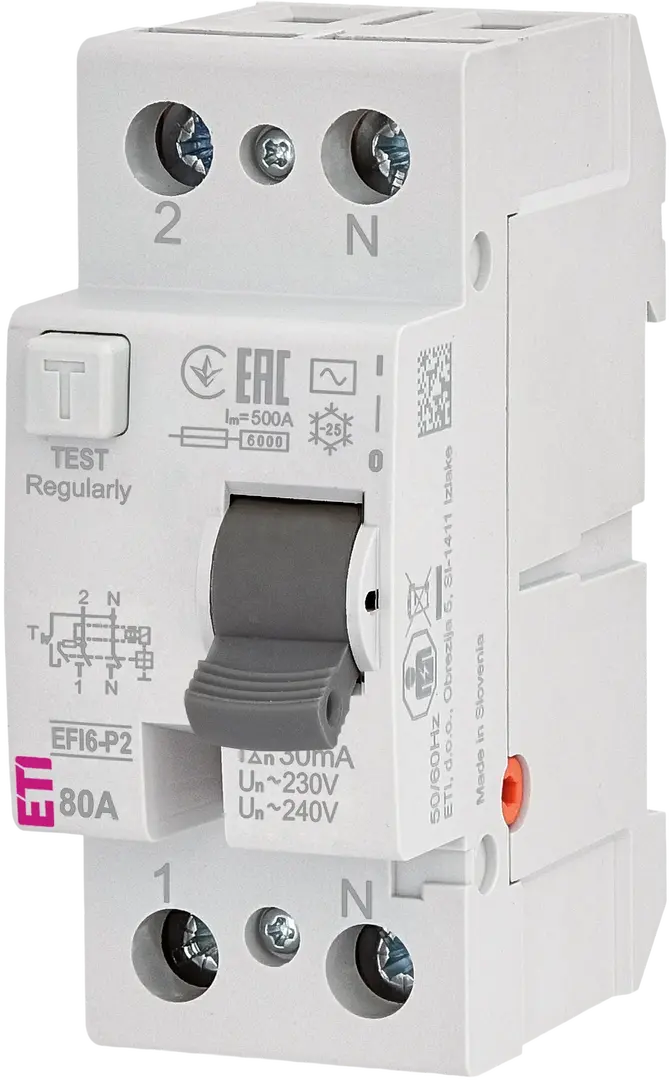

Vaizdas EFI6-P2 AC 80/0.03

EFI6-P2 AC 80/0.03 Srovės nuotekio relė

ETI kodas:: 002061254
Funkcija:: RCCB
Katalogo grupė:: EFI6-P2
Pritaikymas:: IEC/EN 61008
Nominali liekamoji darbinė srovė IDn (mA):: 0,03 A
Nuotekio srovė (A):: 0,03 A
Tipas:: AC
Vardinė srovė (A):: 80 A
Gylis (mm):: 68 mm
Montavimo būdas:: TH 35
Polių skaičius:: 1+N
Nominali sąlyginė trumpojo jungimo srovė Inc (kA):: 6 kA
Atjungimo laikas:: Neaizkavēts
Vardinė įtampa AC (V):: 230/240 V
Dažnis (Hz):: 50/60 Hz
Nominalus skerspjūvis:: 1-25 mm²
Standartai:: IEC/EN 61008
Apsaugos klasė IP:: IP20

Produktas

Svoris: 171 g
Net width: 35,9 mm
Net height: 88,7 mm
Net depth: 72,35 mm
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895866268
Basic packaging weight: 0,194 kg
Basic packaging volume: 0,27 dm³

Transporto pakuotė

Transport packaging quantity: 54 pcs
EAN code for a transport packaging: 3838895866275
Transport packaging weight: 10,776 kg
Transport packaging volume: 17,4 dm³
Pallet quantity: 2 808 pcs
Customs tariff: 85362090

Additional equipment possible: ✓
Rated insulation voltage Ui: 440 V
Built-in depth: 68 mm
Leakage current type: AC
Surge current capacity: 0,4 kA
Rated impulse withstand voltage Uimp: 6 kV
Degree of protection (IP): IP20
Mounting method: DIN rail
Rated fault current: 0,03 A
Frequency: 50/60 Hz
Number of poles: 2
Short-circuit breaking capacity (Icw): 6 kA
Rated voltage: 240 V
Rated current: 80 A
Width in number of modular spacings: 2
Ambient temperature during operating(Min): −25 °C
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Ambient temperature during operating(Max): 55 °C
