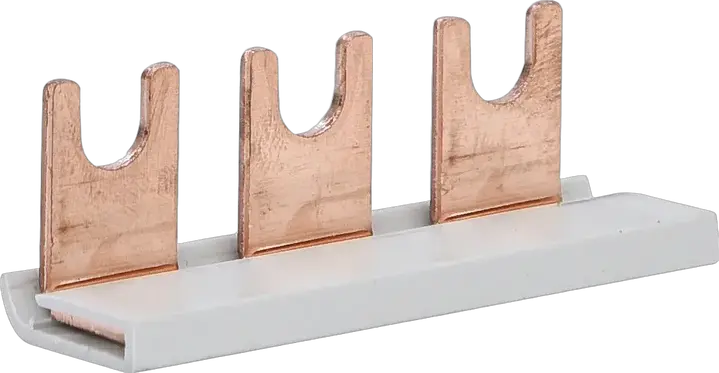

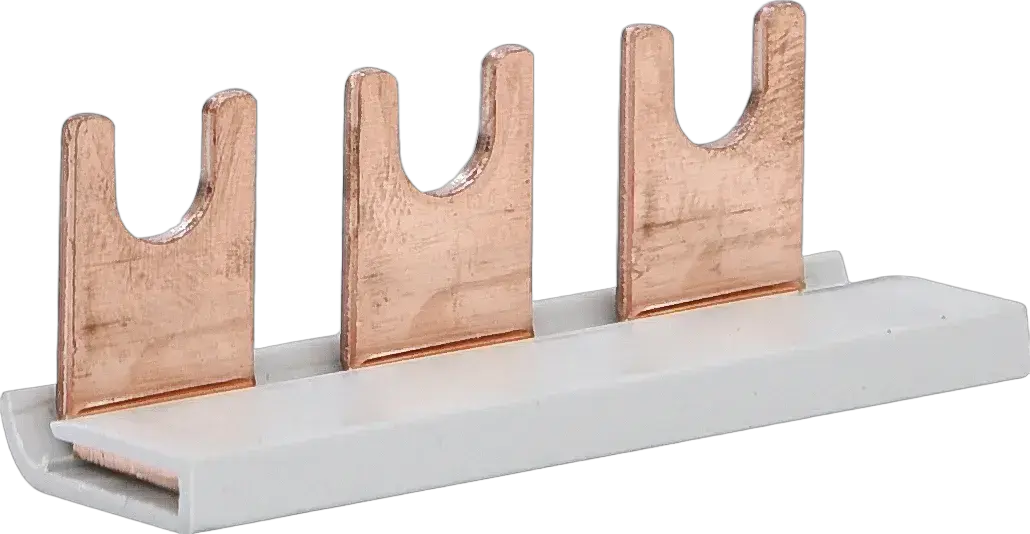

IZ16/1F/3/ETITEC Izoliuota šyna

ETI kodas:: 002921082
Funkcija:: Connection terminals
Naudojamas kartu su:: ETIMAT 6, ETITEC B T12, C T2, D T3, SV, VLD01, ETIMAT P10
Srovės tipas:: AC

Priedai

Produktas

EAN code for a single product: 5907625307338
Svoris: 0,27 kg
Net width: 47,6 mm
Net height: 18,6 mm
Net depth: 17,12 mm
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 50 pcs
EAN code for a basic packaging: 5907625307468
Basic packaging weight: 0,83 kg
Basic packaging volume: 1,1 dm³

Transporto pakuotė

Transport packaging quantity: 600 pcs
EAN code for a transport packaging: 5907625307536
Transport packaging weight: 10,2 kg
Transport packaging volume: 14 dm³
Pallet quantity: 46 800 pcs
Customs tariff: 85389099

Rated surge voltage: 4 kV
Cross section: 16 mm²
Number of phases: 1
Rated permanent current Iu: 100 A
Suitable for number of devices: 3
Module width: 6,2 mm
Length: 55 mm
Max. rated operation voltage Ue: 500 V
Insulated: ✓
Type of electric connection: Fork
Width in number of modular spacings: 3

ETIM klasifikacija – 9.0 versija
