Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921216

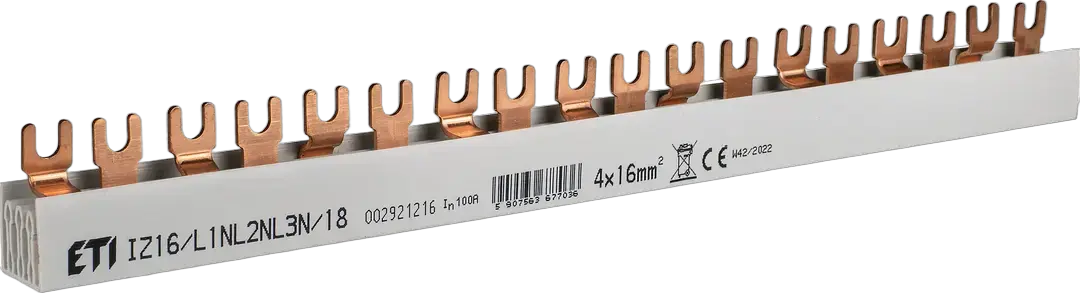

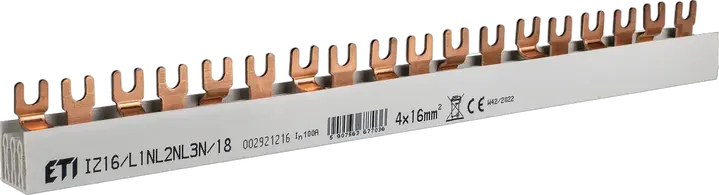

Vaizdas IZ16/L1NL2NL3N/18

IZ16/L1NL2NL3N/18 Izoliuota šyna

ETI kodas:: 002921216
Naudojamas kartu su:: ETIMAT 6, SV, ETIMAT 10
Tipas:: Fork Type
Polių skaičius:: 3+N
Funkcija:: Section rails
Tipas:: FORK
Vardinė srovė (A):: 100 A
Nominalus skerspjūvis:: 16 mm²
Ilgis moduliais:: 1x18
Fazių skaičius:: 4
Vardinė įtampa AC (V):: 500 V
Vardinė įtampa DC (V):: 500 V
Priedų tipas:: Section rails

Produktas

Svoris: 0,293 kg
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 5907563676077
Basic packaging weight: 0,292 kg
Basic packaging volume: 0,254 dm³

Transporto pakuotė

Intermediate packaging quantity: 10 pcs
EAN code for a intermediate packaging: 5907563677036
Intermediate packaging weight: 2,92 kg
Transport packaging quantity: 120 pcs
EAN code for a transport packaging: 5907563670075
Transport packaging weight: 35,04 kg
Transport packaging volume: 30,48 dm³
Pallet quantity: 6 000 pcs
Customs tariff: 85389099

Cross section: 16 mm²
Number of phases: 4
Rated permanent current Iu: 100 A
Module width: 17,8 mm
Max. rated operation voltage Ue: 500 V
Insulated: ✓
Type of electric connection: Fork

ETIM klasifikacija – 9.0 versija
