Section rails, also known as busbars, play a crucial role in modern electrical installations, acting as the backbone for distributing power within panels and enclosures. They offer a safe, efficient, and organized way to connect multiple electrical devices.

002921131

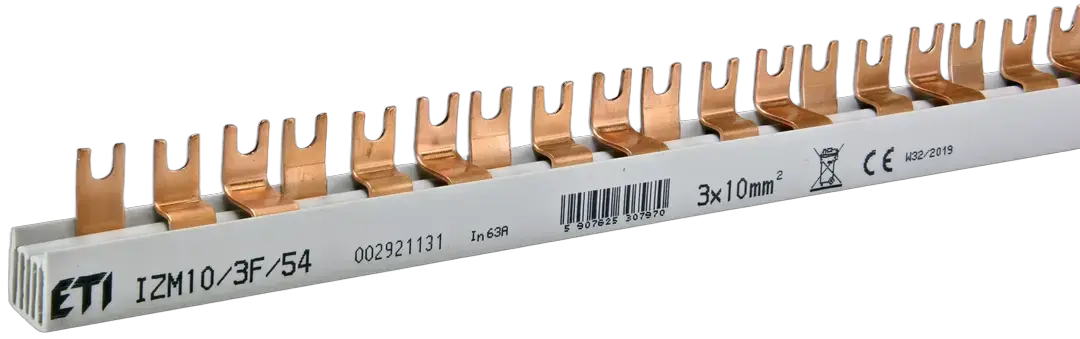

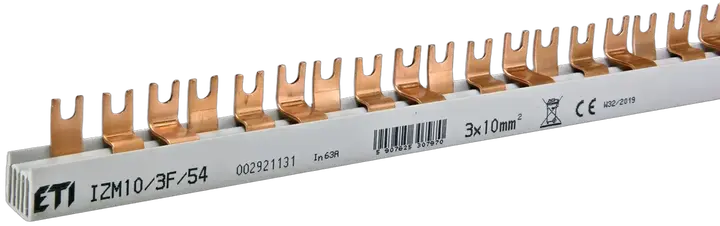

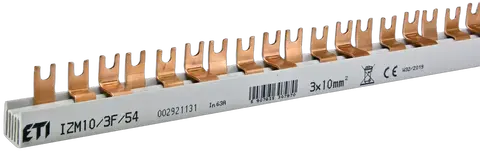

Vaizdas IZM10/3F/54

IZM10/3F/54 Izoliuota šyna

ETI kodas:: 002921131
Naudojamas kartu su:: MPE 25, MS25
Katalogo grupė:: IZ Sekciju sliedes
Tipas:: Fork Type
Funkcija:: Section rails
Tipas:: FORK
Vardinė srovė (A):: 63 A
Nominalus skerspjūvis:: 10 mm²
Ilgis moduliais:: 1x54
Fazių skaičius:: 3
Vardinė įtampa AC (V):: 500 V
Vardinė įtampa DC (V):: 500 V
Priedų tipas:: Section rails

Techninių duomenų katalogas

Produktas

Svoris: 650 g
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 5907625307970
Basic packaging weight: 0,6 kg
Basic packaging volume: 0,6 dm³

Transporto pakuotė

Transport packaging quantity: 20 pcs
EAN code for a transport packaging: 5907625307987
Transport packaging weight: 12 kg
Transport packaging volume: 12 dm³
Pallet quantity: 1 340 pcs
Customs tariff: 85389099

Cross section: 10 mm²
Number of phases: 3
Rated permanent current Iu: 63 A
Module width: 15 mm
Length: 1 000 mm
Max. rated operation voltage Ue: 500 V
Insulated: ✓
Type of electric connection: Fork

ETIM klasifikacija – 9.0 versija
