004110448

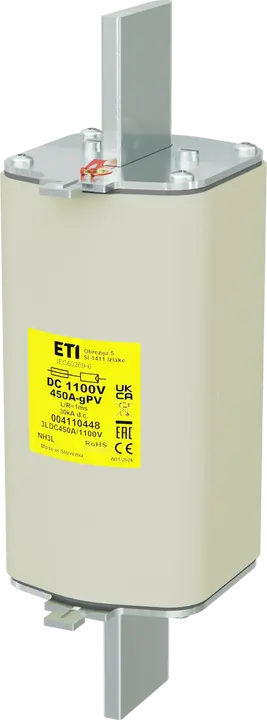

NH3L gPV 450A/1100V DC Saugikliai

ETI kodas:: 004110448
Tipas:: NH
Dydis:: NH3L
Vardinė srovė (A):: 450 A
Charakteristika:: gPV
Indikacija:: Augšējā drošinātāja statusa indikators
Vardinė įtampa DC (V):: 1100 V
Atjungimo geba (DC) (kA):: 30 kA
L/R (ms):: 2 ms
Galios nuostoliai (0,7xIn) (W):: 40 W
Pd (W):: 98 W
Joul`io integralas atjungimas (A2s):: 110 000
Joul`io integralas (A2s):: 280 000
Standartai:: IEC 60269-6
Pritaikymas:: Fuse link for DC application

Priedai

Produktas

Svoris: 1 980 g
Net width: 73 mm
Net height: 207 mm
Net depth: 87,5 mm
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895636724
Basic packaging weight: 2,04 kg
Basic Packaging Dimensions Height: 0,077 m
Basic Packaging Dimensions Width: 0,224 m
Basic Packaging Dimensions Depth: 0,102 m
Basic packaging volume: 0,002 m³

Transporto pakuotė

Transport packaging quantity: 9 pcs
EAN code for a transport packaging: 3838895636731
Transport packaging weight: 18,71 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 468 pcs
Customs tariff: 85351000

Voltage type: DC
Fuse construction type according to IEC 60269: 3L
Power loss at rated current: 98 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 450 A
Rated voltage DC: 1 100
Utilization category: gPV (photovoltaic protection)
