004186626

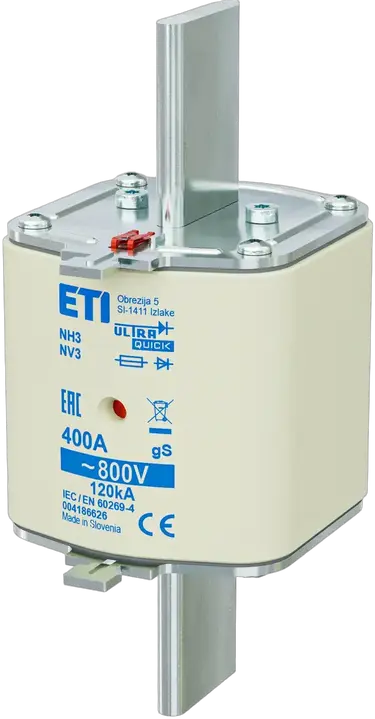

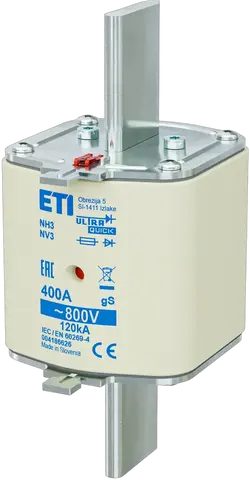

NH3 gS 400A/800V Saugikliai

ETI kodas:: 004186626
Tipas:: NH
Dydis:: NH3
Vardinė srovė (A):: 400 A
Charakteristika:: gS
Indikacija:: Kombinētā drošinātāja statusa indikators
Vardinė įtampa AC (V):: 800 V
Atjungimo geba (AC) (kA):: 120 kA
Galios nuostoliai (0,7xIn) (W):: 14,9 W
Pd (W):: 33 W
Joul`io integralas atjungimas (A2s):: 160 000
Joul`io integralas (A2s):: 1 500 000
Standartai:: IEC 60269-4
Pritaikymas:: For cable protection on a.c. side of PV inverter

Produktas

EAN code for a single product: 3838400144638
Svoris: 800 g
Net width: 65 mm
Net height: 149,4 mm
Net depth: 83,4 mm
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838400144645
Basic packaging weight: 2,488 kg
Basic Packaging Dimensions Height: 0,093 m
Basic Packaging Dimensions Width: 0,203 m
Basic Packaging Dimensions Depth: 0,153 m
Basic packaging volume: 0,003 m³

Transporto pakuotė

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838400144652
Transport packaging weight: 10,302 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 624 pcs
Customs tariff: 85361090

Rated switching capacity AC: 120 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH3
Rated voltage AC: 800
Power loss at rated current: 33 W
Type of fuse status indicator: Combination fuse status indicator
Rated current: 400 A
Utilization category: Other
