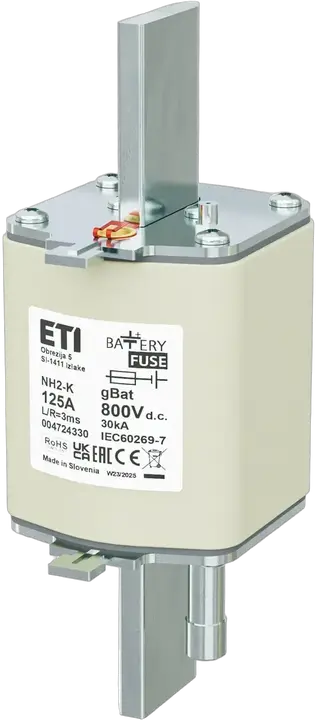

NH2/K gBat 125A/800V DC Saugikliai

ETI kodas:: 004724330
Tipas:: NH-K
Dydis:: NH2
Vardinė srovė (A):: 125 A
Charakteristika:: gBat
Indikacija:: Trieciens tapas statusa indikators
Vardinė įtampa DC (V):: 800 V
Atjungimo geba (DC) (kA):: 30 kA
L/R (ms):: 3 ms
Galios nuostoliai (0,7xIn) (W):: 9 W
Pd (W):: 20 W
Joul`io integralas atjungimas (A2s):: 2 200
Joul`io integralas (A2s):: 13 046
Standartai:: IEC 60269-7
Pritaikymas:: Battery protection

Priedai

Produktas

EAN code for a single product: 3838895760382
Svoris: 700 g
Net width: 54 mm
Net height: 150 mm
Net depth: 71,4 mm
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895708056
Basic packaging weight: 2,176 kg
Basic Packaging Dimensions Height: 0,079 m
Basic Packaging Dimensions Width: 0,17 m
Basic Packaging Dimensions Depth: 0,17 m
Basic packaging volume: 0,002 m³

Transporto pakuotė

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895708063
Transport packaging weight: 17,954 kg
Transport Packaging Dimensions Height: 0,23 m
Transport Packaging Dimensions Width: 0,38 m
Transport Packaging Dimensions Depth: 0,38 m
Transport packaging volume: 0,033 m³
Pallet quantity: 576 pcs
Customs tariff: 85361090

Voltage type: DC
Fuse construction type according to IEC 60269: NH2
Power loss at rated current: 20 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Other
Rated current: 125 A
Rated voltage DC: 800
Utilization category: Other
