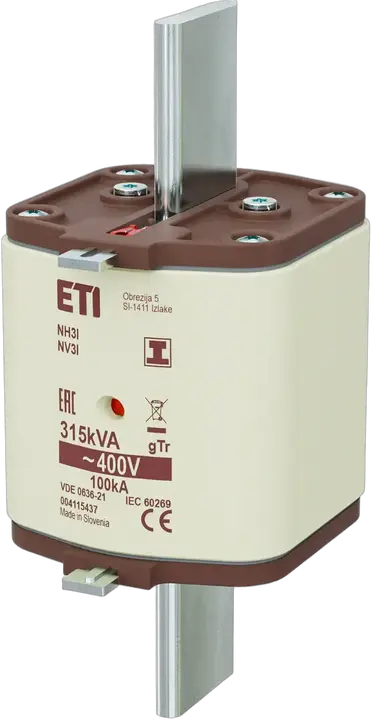

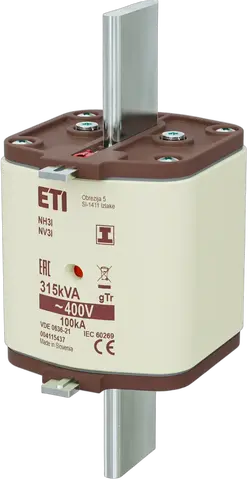

NH3/I gTr 455A/400V/315kVA Saugikliai

ETI kodas:: 004115437
Tipas:: NH-I
Dydis:: NH3
Transformatorius:: 315 kVA
Charakteristika:: gTr
Indikacija:: Kombinētā drošinātāja statusa indikators
Vardinė įtampa AC (V):: 400 V
Atjungimo geba (AC) (kA):: 100 kA
Pd (W):: 32,8 W
Joul`io integralas atjungimas (A2s):: 720 000
Joul`io integralas (A2s):: 1 950 000
Standartai:: VDE 0636-21
Pritaikymas:: Protection of transformers

Priedai

Produktas

EAN code for a single product: 3838400038418
Svoris: 800 g
Net width: 65 mm
Net height: 150,4 mm
Net depth: 83,4 mm
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895785347
Basic packaging weight: 2,488 kg
Basic Packaging Dimensions Height: 0,093 m
Basic Packaging Dimensions Width: 0,203 m
Basic Packaging Dimensions Depth: 0,153 m
Basic packaging volume: 0,003 m³

Transporto pakuotė

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895785354
Transport packaging weight: 10,302 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 624 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH3
Rated voltage AC: 400
Power loss at rated current: 32,8 W
Type of fuse status indicator: Combination fuse status indicator
Rated current: 455 A
Insulated metal gripping lugs (IMGL): ✓
Utilization category: gTr (Transformer protection)
