004664205

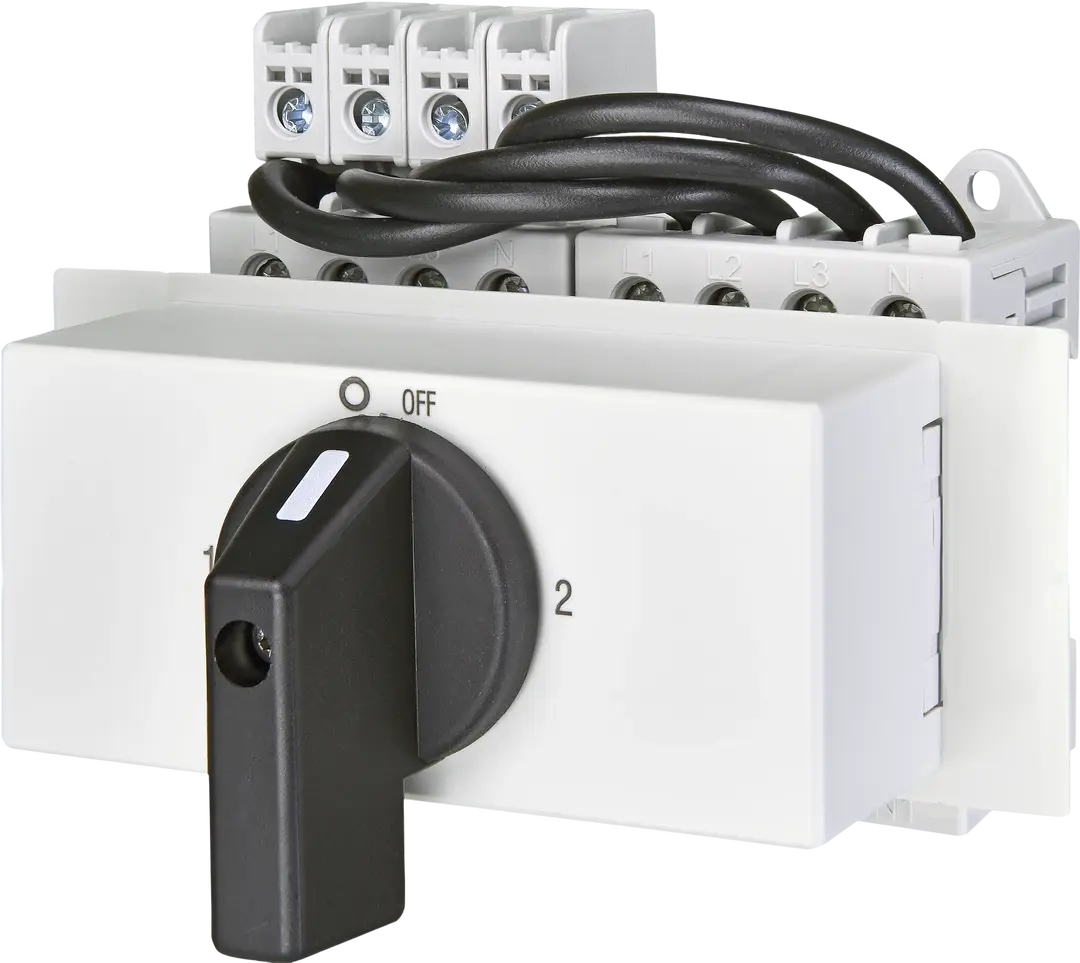

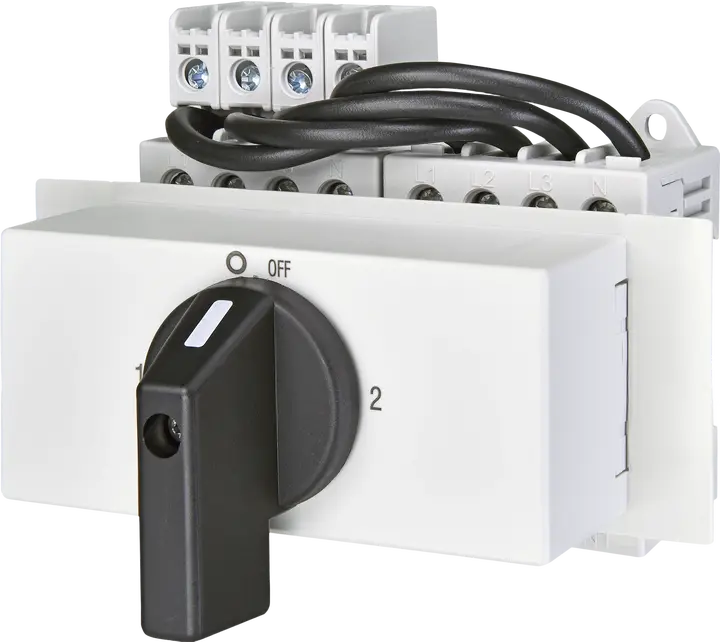

Vaizdas LAS 25 4p COP

LAS 25 4p COP Perjungiklis 1-0-2

ETI kodas:: 004664205
Montavimo būdas:: TH 35
Max. Darbinė įtampa (V AC):: 690 V
Šiluminė srovė Ith (A):: 25 A
Nominali darbinė srovė Ie AC-21 A/B at 415V (A):: 25 A
Nominali izoliacijos įtampa (V):: 800 V
Funkcija:: Manual change-over switches (1-0-2)
Vardinė srovė (A):: 25 A
Tipas:: DIN-rail mounted
Polių skaičius:: 4
Katalogo grupė:: LAS COP

Produktas

Svoris: 0,3 kg
Net width: 125,4 mm
Net height: 96,2 mm
Net depth: 115,7 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895489108
Transport packaging weight: 0,32 kg
Transport Packaging Dimensions Height: 116 mm
Transport Packaging Dimensions Width: 81 mm
Transport Packaging Dimensions Depth: 130 mm
Transport packaging volume: 1,221 dm³
Pallet quantity: 2 667 pcs
Customs tariff: 85365080

Rated permanent current at AC-21, 400 V: 25 A
Max. rated operation voltage Ue AC: 690 V
Version as reversing switch: ✓
Switching power at 400 V: 10 kW
Suitable for floor mounting: ✓
Rated permanent current Iu: 25 A
Type of control element: Short thumb-grip
Conditioned rated short-circuit current Iq: 10 kA
Type of electrical connection of main circuit: Screw connection
Degree of protection (IP), front side: IP40
Device construction: Built-in device fixed built-in technique
Rated operation power at AC-23, 400 V: 10 kW
Colour control element: Black
Rated short-time withstand current lcw: 3 kA
Suitable for distribution board installation: ✓
Rated operating voltage(Min): 220 V
Rated operating voltage(Max): 690 V

ETIM klasifikacija – 9.0 versija
