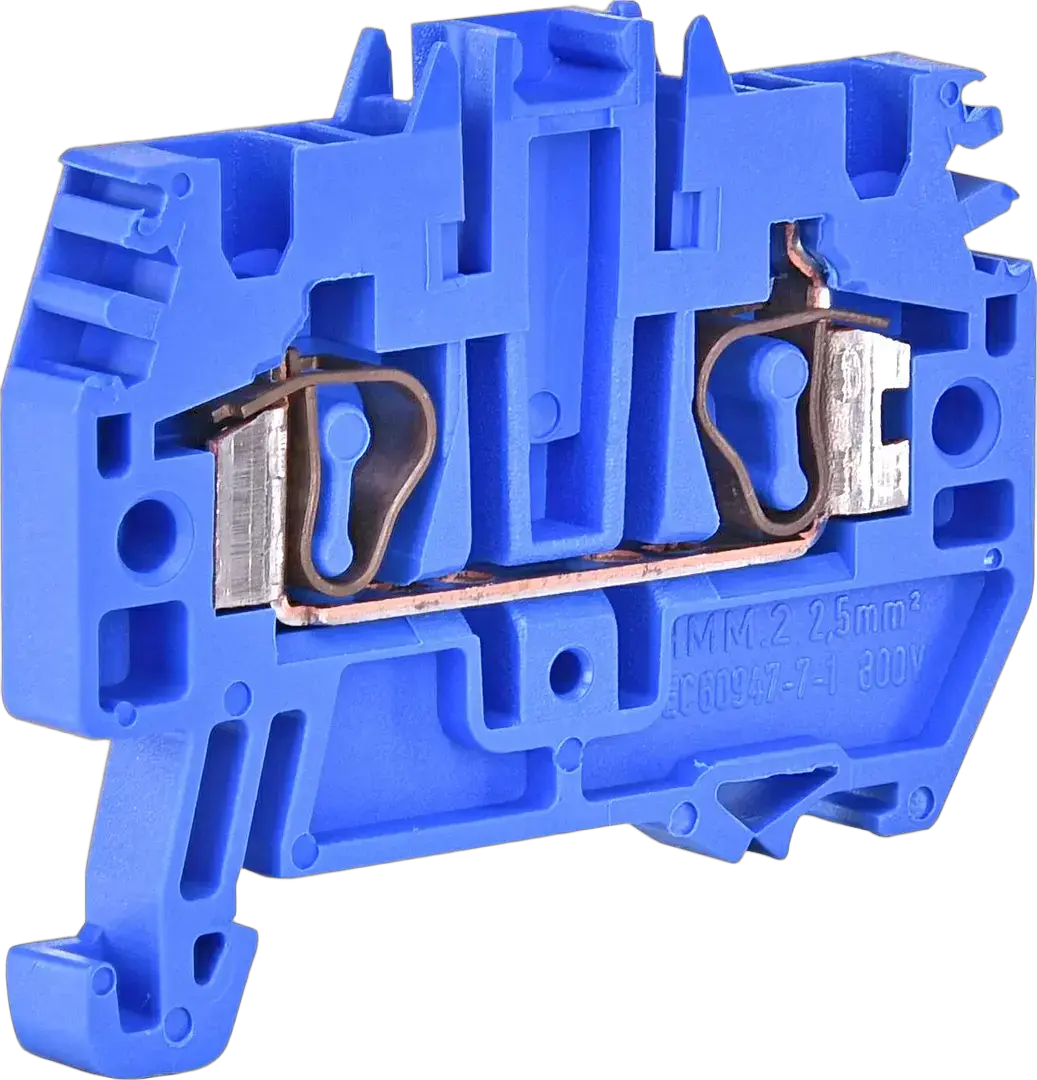

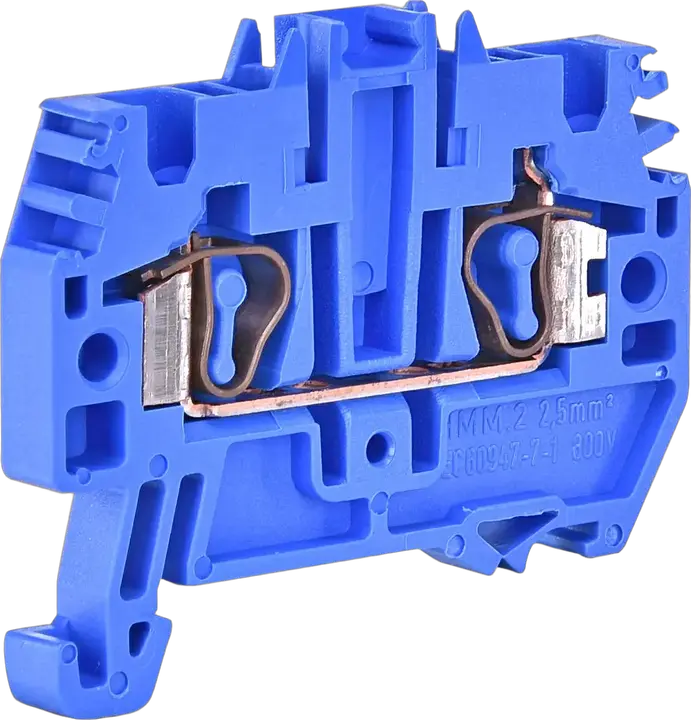

ESP-HMM.2B Neutralus gnybtas

ETI kodas:: 003903167
Vardinė įtampa AC (V):: 800 V
Vardinė įtampa DC (V):: 800 V
Katalogo grupė:: ES Atsperes skava spaiļu bloki
Montavimo būdas:: TH 35
Tipas:: ES Spring Clamp Terminal Blocks
Lygis:: Viens
Spalva:: Zils
Nominalus skerspjūvis:: 2 mm²
Nominali impulsų atsparumo įtampa Uimp (kV):: 8 kV
Max srovė vardinio skerspjūvio (mm2):: 24 mm²
Prijungiamo laidininko skerspjūvis (mm2):: 2-4 mm²
Kryžminis sujungimas:: ✓
Reikalingas užbaigimas:: ✓

Priedai

Produktas

EAN code for a single product: 3838895862345
Svoris: 7,1 g
Net width: 5,2 mm
Net height: 50 mm
Net depth: 40,5 mm
Stock unit of measure: pcs

Transporto pakuotė

Transport packaging quantity: 80 pcs
EAN code for a transport packaging: 3838895789611
Transport packaging weight: 0,613 kg
Transport Packaging Dimensions Height: 70 mm
Transport Packaging Dimensions Width: 150 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,575 dm³
Pallet quantity: 44 800 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': ✓
Width: 5,2 mm
Material insulation body: Thermoplastic
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: ✓
Type of electrical connection 2: Spring clamp connection
Rated voltage: 800 V
Colour: Blue
Height: 41 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): −40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2,5 mm²

ETIM klasifikacija – 9.0 versija
