002652037

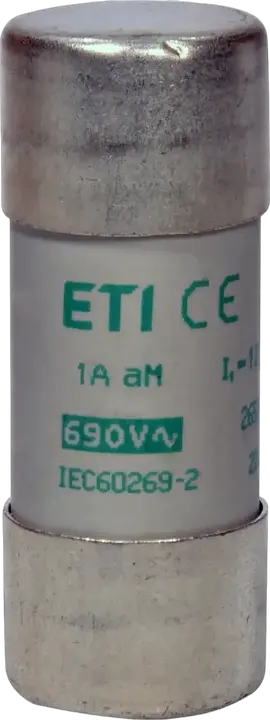

CH22x58 aM 1A/690V Saugikliai

ETI kodas:: 002652037
Tipas:: CH
Tipas:: CH
Dydis:: 22x58
Vardinė srovė (A):: 1 A
Vardinė įtampa AC (V):: 690 V
Charakteristika:: aM
Atjungimo geba (AC) (kA):: 120 kA
Pritaikymas:: For relays, contactors and motors protection in case of short-circuit
Pd (W):: 0,2 W
Standartai:: IEC 60269-1, IEC 60269-2

Priedai

Produktas

EAN code for a single product: 3838400115539
Svoris: 0,054 kg
Net width: 22,2 mm
Net height: 58 mm
Net depth: 22,2 mm
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838400096081
Basic packaging weight: 0,559 kg
Basic Packaging Dimensions Height: 23 mm
Basic Packaging Dimensions Width: 119 mm
Basic Packaging Dimensions Depth: 117 mm
Basic packaging volume: 0,32 dm³

Transporto pakuotė

Transport packaging quantity: 250 pcs
EAN code for a transport packaging: 3838400096098
Transport packaging weight: 14,415 kg
Transport Packaging Dimensions Height: 300 mm
Transport Packaging Dimensions Width: 300 mm
Transport Packaging Dimensions Depth: 400 mm
Transport packaging volume: 36 dm³
Pallet quantity: 6 000 pcs
Customs tariff: 85361010

Voltage type: AC
Size: 22x58 mm
Breaking capacity: 120 kA
Rated voltage: 690 V
Rated current: 1 A
Utilization category: aM (switchgear protection)
Rated operating frequency(Min): 50 Hz
Rated operating frequency(Max): 50 Hz

ETIM klasifikacija – 9.0 versija
