002652002

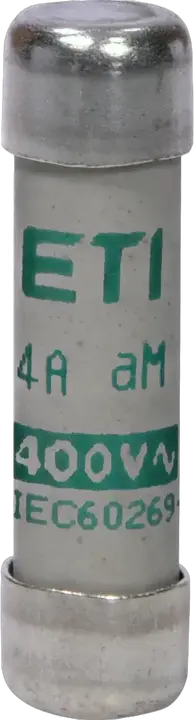

CH8x32 aM 4A/400V Saugikliai

ETI kodas:: 002652002
Tipas:: CH
Tipas:: CH
Dydis:: 8x32
Vardinė srovė (A):: 4 A
Vardinė įtampa AC (V):: 400 V
Charakteristika:: aM
Atjungimo geba (AC) (kA):: 20 kA
Pritaikymas:: For relays, contactors and motors protection in case of short-circuit
Pd (W):: 0,26 W
Standartai:: IEC 60269-1, IEC 60269-2

Priedai

Produktas

EAN code for a single product: 3838400115188
Svoris: 0,004 kg
Net width: 8,5 mm
Net height: 32 mm
Net depth: 8,5 mm
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838400095381
Basic packaging weight: 0,043 kg
Basic Packaging Dimensions Height: 10,5 mm
Basic Packaging Dimensions Width: 70 mm
Basic Packaging Dimensions Depth: 46 mm
Basic packaging volume: 0,034 dm³

Transporto pakuotė

Transport packaging quantity: 2 500 pcs
EAN code for a transport packaging: 3838400095398
Transport packaging weight: 11,253 kg
Transport Packaging Dimensions Height: 140 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 390 mm
Transport packaging volume: 15,834 dm³
Pallet quantity: 132 500 pcs
Customs tariff: 85361010

Voltage type: AC
Size: 8x32 mm
Breaking capacity: 20 kA
Rated voltage: 400 V
Rated current: 4 A
Utilization category: aM (switchgear protection)
Rated operating frequency(Min): 50 Hz
Rated operating frequency(Max): 50 Hz

ETIM klasifikacija – 9.0 versija
