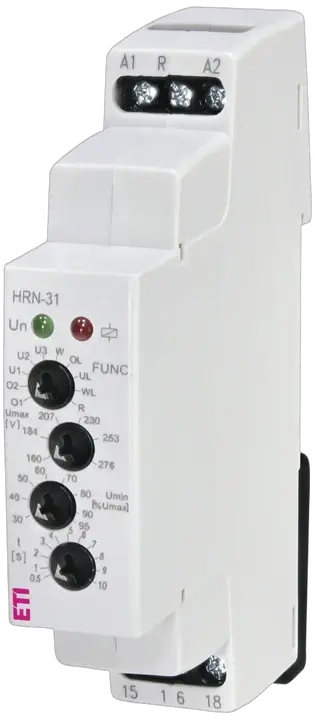

HRN-31 Valdymo relė

ETI kodas:: 002471450
Montavimo būdas:: DIN sliede
Clamping cross-section (mm²):: 0.5-2.5 mm²
Funkcija:: Monitoring and Control relays
Maitinimo įtampa (V):: 48-276 V
Valdymo tipas:: Umax, Umin
Kontaktų kiekis:: 1
Įtampos tipas:: AC/DC
Pritaikymas:: Służy do nadzorowania wartości napięcia prądu stałego albo zmiennego w obwodach jednofazowych
Didžiausia apkrova AC1 (VA):: 4 000 VA
Apsaugos klasė IP:: IP40, IP20
Vardinė srovė (A):: 16 A
Kontaktų tipas:: 1xCO
NC kontaktų skaičius:: 1
CO kontaktų skaičius:: 1
NO kontaktų kiekis:: 1
Valdymo - maitinimo įtampa Uc (V):: 48-276 V

Produktas

Svoris: 0,082 kg
Net width: 17,6 mm
Net height: 93 mm
Net depth: 64,4 mm
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400113405
Basic packaging weight: 0,082 kg
Basic Packaging Dimensions Height: 97 mm
Basic Packaging Dimensions Width: 25 mm
Basic Packaging Dimensions Depth: 70 mm
Basic packaging volume: 0 dm³

Transporto pakuotė

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838400113399
Transport packaging weight: 0,138 kg
Transport Packaging Dimensions Height: 284 mm
Transport Packaging Dimensions Width: 102 mm
Transport Packaging Dimensions Depth: 75 mm
Transport packaging volume: 2,173 dm³
Pallet quantity: 5 000 pcs
Customs tariff: 85364900

Single-phase under voltage possible: ✓
Width: 18 mm
Single-phase hysteresis possible: ✓
Max. permitted delay-on energization time: 10 s
Min. adjustable delay-on energization time: 0,5 s
Max. permitted off-delay time: 10 s
Voltage type (supply voltage): AC/DC
Min. adjustable off-delay time: 0,5 s
Contains function DC-voltage hysteresis: ✓
Type of voltage measuring range: AC/DC
Rated switch current: 16 A
Single-phase over voltage possible: ✓
Contains function DC-under voltage: ✓
Contains function DC-over voltage: ✓
Depth: 65 mm
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Operating voltage AC 50 Hz(Min): 48 V
Operating voltage AC 60 Hz(Min): 48 V
Supply voltage AC 60 Hz(Min): 48 V
Supply voltage DC(Min): 48 V
Operating voltage DC(Min): 48 V
Voltage measuring range 1(Min): 48 V
Supply voltage AC 50 Hz(Min): 48 V
Voltage measuring range 1(Max): 276 V
Supply voltage AC 50 Hz(Max): 276 V
Operating voltage AC 60 Hz(Max): 276 V
Supply voltage DC(Max): 276 V
Operating voltage AC 50 Hz(Max): 276 V
Supply voltage AC 60 Hz(Max): 276 V
Operating voltage DC(Max): 276 V

ETIM klasifikacija – 9.0 versija
