Monitoring and control relays are crucial elements in modern electrical systems, responsible for ensuring safety, reliability, and efficient operation. These relays go beyond simple on/off switches, actively monitoring various electrical parameters, such as voltage, current, frequency, and level. They trigger pre-defined actions based on these monitored conditions, acting as intelligent intermediaries to protect equipment, prevent faults, and automate processes.

002471431

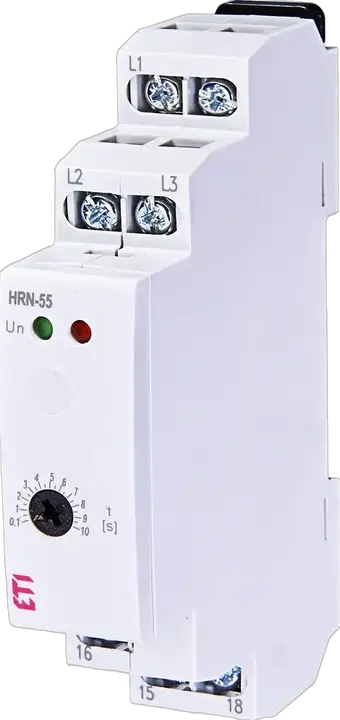

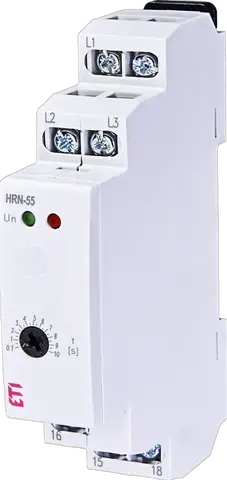

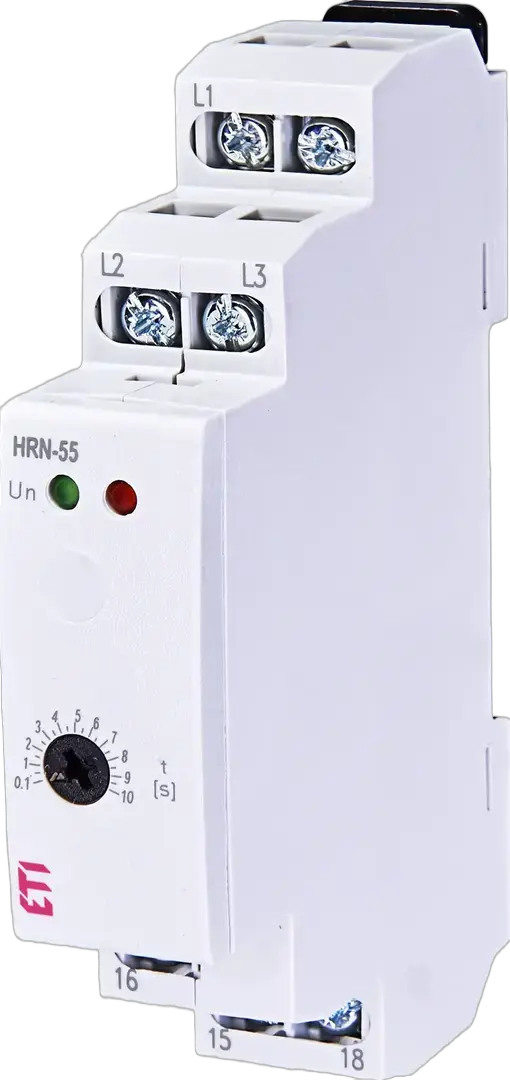

Vaizdas HRN-55

HRN-55 Valdymo relė

ETI kodas:: 002471431
Kategorija:: Voltage monitoring relay
Katalogo grupė:: Vadības un mērīšanas sprieguma releji
Katalogo pogrupis:: Phase sequence monitoring relay
Tipas:: Voltage monitoring relay
Funkcija:: Monitoring and Control relays
Maitinimo įtampa (V):: 400 V
Valdymo tipas:: Phase failure, Sequence phase
Kontaktų kiekis:: 1
Įtampos tipas:: AC
Didžiausia apkrova AC1 (VA):: 2 500 VA
Vardinė srovė (A):: 8 A
Kontaktų tipas:: 1xCO
CO kontaktų skaičius:: 1

Produktas

Svoris: 0,239 kg
Stock unit of measure: pcs

Pagrindinė pakuotė

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895473633
Basic packaging weight: 0,067 kg
Basic packaging volume: 0,31 dm³

Transporto pakuotė

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895473640
Transport packaging weight: 0,67 kg
Transport packaging volume: 1,3 dm³
Pallet quantity: 11 940 pcs
Customs tariff: 85364900

Single-phase under voltage possible: ✓
Width: 18 mm
Three-phase under voltage possible: ✓
Single-phase hysteresis possible: ✓
Max. permitted delay-on energization time: 10 s
Min. adjustable delay-on energization time: 0,1 s
Voltage type (operating voltage): AC/DC
Max. permitted off-delay time: 10 s
Voltage type (supply voltage): AC
Min. adjustable off-delay time: 0,1 s
Three-phase over voltage possible: ✓
Type of voltage measuring range: AC
Rated switch current: 8 A
Single-phase over voltage possible: ✓
Depth: 64 mm
Three-phase hysteresis possible: ✓
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Operating voltage AC 50 Hz(Min): 400 V
Operating voltage AC 60 Hz(Min): 400 V
Supply voltage AC 60 Hz(Min): 400 V
Supply voltage AC 50 Hz(Min): 400 V
Supply voltage AC 50 Hz(Max): 400 V
Operating voltage AC 60 Hz(Max): 400 V
Operating voltage AC 50 Hz(Max): 400 V
Supply voltage AC 60 Hz(Max): 400 V

ETIM klasifikacija – 9.0 versija

002471431 Valdymo relė HRN-55 EVE/ETIREL Control equipment Relays Relays Phase sequence monitoring relay Phase sequence monitoring relay Tarptautinis Automatikos, signaliniai ir valdymo prietaisai Kontrolės relės Kontaktų tipas: 1xCO NC kontaktų skaičius: 0 Įtampos tipas: AC Kontaktų kiekis: 1 CO kontaktų skaičius: 1 Valdymo tipas: Phase failure, Sequence phase, Umax, Umin Funkcija: Monitoring and Control relays Didžiausia apkrova AC1 (VA): 2500 VA NO kontaktų kiekis: 0 Maitinimo įtampa (V): 400 V-400 V Vardinė srovė (A): 8 A/8 A Valdymo - maitinimo įtampa Uc (V): 0 V-0 V Valdymo relė TOWAR Funkcija: Monitoring and Control relays Maitinimo įtampa (V): 400 V-400 V Valdymo tipas: Phase failure, Sequence phase, Umax, Umin Kontaktų kiekis: 1 Įtampos tipas: AC Vardinė srovė (A): 8 A/8 A Didžiausia apkrova AC1 (VA): 2500 VA Kontaktų tipas: 1xCO NC kontaktų skaičius: 0 CO kontaktų skaičius: 1 NO kontaktų kiekis: 0 Valdymo - maitinimo įtampa Uc (V): 0 V-0 V
