Viršitampiu slopintuvai relems MER2 ir ERM

Įvadas

Protection Modules for ERM relays that offer protection against EMC disturbance and limit overvoltage.

In case of MER 2 relays offer protection and some include AC and DC indication.

ETI gaminių serija

• 1. For ERM relays

  • Protect against EMC disturbance and limit overvoltage.
  • ERC-024AC: For AC coils up to 24 V

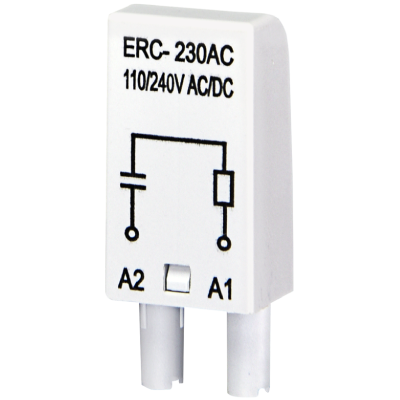

  • ERC-230AC: For AC coils up to 230 V
  • ERC-(024...230)ACDCL: MOV protection module with indication for AC and DC coils, available in different voltage ranges
    • ERC-024ACDCL: 6-24 V AC/DC
    • ERC-060ACDCL: 24-60 V AC/DC
    • ERC-230ACDCL: 110-230 V AC/DC

  2. For MER2 relays

  • Protection Modules (ERC): These modules offer protection, and some include AC and DC indication.
  • ERC-024AC: Protection module associated with MER2-024AC
  • ERC-230AC: Protection module associated with MER2-230AC
  • ERC-024ACDCL: MOV protection module with AC and DC indication, for use with MERB-T and MERB-M sockets. Designed for Uc = 6 ... 24 V AC/DC
  • ERC-060ACDCL: MOV protection module with AC and DC indication, for use with MERB-T and MERB-M sockets. Designed for Uc = 24 ... 60 V AC/DC
  • ERC-230ACDCL: MOV protection module with AC and DC indication, for use with MERB-T and MERB-M sockets. Designed for Uc = 110 ... 230 V AC/DC
