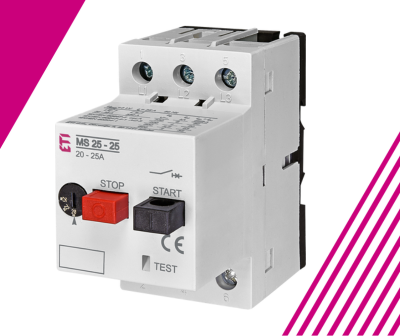

Varikliniai automatiniai jungikliai

• Current Range: 0.4 A to 52 A, catering to a wide range of motor sizes.
• Thermal Overload Protection: Adjustable thermal overload releases ("a releases") allow precise setting of the rated current for the motor being protected.
• Magnetic Short Circuit Protection: Fixed-set instantaneous short-circuit releases ("n releases") set to 12 times the rated current ensure reliable short circuit protection and faultless motor starting.
• Fuseless Starter Combinations: Can be combined with contactors to create fuseless starter combinations.
• Wide Operating Temperature Range: Suitable for use in diverse climates, with permissible ambient temperatures ranging from -20°C to +55°C at full rated current.

• Current Range: 0.16 A to 80 A, covering a broader range of motor applications.
• Fixed Short Circuit Release: Provides a fixed short circuit release set at 13 times the rated current (Iu) for consistent protection.
• Phase Failure Sensitivity: Compliant with IEC/EN 60947-4-1, ensuring protection against phase failures.
• Temperature Compensation: Ensures reliable tripping characteristics across varying ambient temperatures.
• Main Switch Capability: Can be used as a main switch for added convenience and functionality.
• High Breaking Capacity: MPE25 models up to 10A at 400/415V are self-protected, while those above 10A offer a breaking capacity of 50kA at 400/415V. MPE80 models provide a breaking capacity of 60kA at 380V.
• Versatile Mounting Options: Available with various accessories like door coupling rotary handles, insulated enclosures, flush mounting enclosures, and push-in-lugs for flexible installation.

Motors are integral to countless industrial and commercial applications, powering machinery, pumps, fans, and more. They are susceptible to various electrical faults that can lead to damage, downtime, and costly repairs. MPCBs play a crucial role in mitigating these risks, protecting motors from:

• Overloads: Occur when a motor is subjected to a current exceeding its rated capacity for an extended period. Overloads can cause overheating, insulation breakdown, and motor burnout.
• Short Circuits: Occur when a low-resistance path is created in the circuit, resulting in a sudden surge of current. Short circuits can cause severe damage to motors, wiring, and other components.
• Phase Failures: Occur when one or more phases of the power supply are lost. This can cause imbalanced currents in the motor, leading to overheating and potential damage.

MPCBs integrate two primary protection mechanisms:

• Thermal Overload Protection: This mechanism protects against overloads by utilizing a bimetallic strip that heats up in response to excessive current. As the strip heats up, it bends, eventually tripping the circuit breaker and interrupting the current flow to the motor. The tripping time is inversely proportional to the current, ensuring faster tripping for higher overcurrents.
• Magnetic Short Circuit Protection: This mechanism provides instantaneous protection against short circuits. When a short circuit occurs, a sudden surge of current creates a strong magnetic field that triggers the circuit breaker's tripping mechanism, immediately interrupting the fault current.

MPCBs are available in a variety of types and configurations, tailored to specific applications and motor requirements:

• Manual Motor Starters: These basic MPCBs offer manual ON/OFF control and thermal overload protection. They are typically used for smaller motors and simple applications.
• Automatic Motor Starters: These MPCBs provide automatic control and protection, incorporating contactors for switching the motor ON and OFF. They often include features like remote control, overload protection, and short circuit protection.
• Combination Motor Starters: These integrated units combine an MPCB with a contactor in a single enclosure, providing a compact and convenient solution for motor control and protection.

Choosing the appropriate MPCB involves considering several key factors:

• Motor Full Load Current (FLA): This is the current drawn by the motor at its rated output power. The MPCB's rated current should be equal to or slightly higher than the motor's FLA to ensure proper overload protection.
• Motor Starting Current: Motors draw a significantly higher current during startup than during normal operation. The MPCB should be able to handle this inrush current without tripping.
• Voltage Rating: The MPCB's voltage rating should match the supply voltage of the motor.
• Short Circuit Current Rating: This rating indicates the maximum short circuit current the MPCB can safely interrupt.
• Type of Motor: Different types of motors have different starting characteristics and protection requirements. For example, single-phase motors may require a different type of MPCB than three-phase motors.
