Saugiklių NH laikikliai

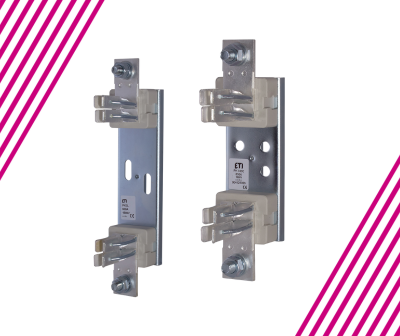

Detailed Specifications of ETI Fuse Bases:

ETI’s fuse bases for NH DC fuse-links come in various sizes and configurations, each designed to meet specific requirements. Here is a summary of their key parameters:

General Specifications:

• Rated Voltage: Available in both 1000V a.c./d.c. and 1500V d.c. ratings.
• Rated Current: Designed to handle currents from 160A up to 630A, depending on the specific model.
• Insulation Class: These fuse bases are designed with appropriate insulation.
• Degree of Protection: They have a degree of protection of IP00.
• Standards Compliance: Complies with IEC 60269, DIN VDE 0636, DIN 43620, and DIN 43623 standards.
• Cable Lugs: Designed to accommodate cable lugs according to DIN 46235 standards.

• Tightening Torque: The bases specify the tightening torque for the terminals.
• Cable Connection: They support cable lugs according to DIN 46235.
• Accessories: Gripping lug covers are available separately as accessories.
• Mounting: The bases can be mounted in vertical or horizontal positions.
• Operating Conditions: They are designed for use in ambient temperatures ranging from -25°C to +55°C, with potential current reductions at higher temperatures.
