Saugikliai TVSS apsaugai

Introduction

ETI product series

ETI's SRF Series:

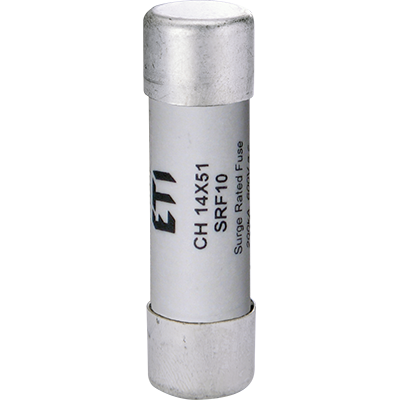

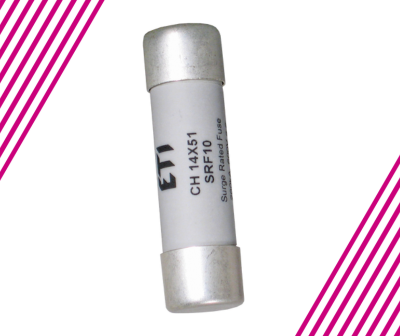

• CH SRF 8/20 μs Class II: These fuses are specifically designed for 8/20 μs lighting surge pulses.
  • They have a rated voltage of 600V a.c..
  • They have a breaking capacity of 200kA a.c..
  • They are available in surge ratings from 10 kA to 40 kA.

• CH SRF 25kA Class I: These fuses are designed for 10/350 μs lighting surge pulses.
  • They have a rated voltage of 400V a.c..
  • They have a breaking capacity of 50kA a.c..
  • They have a surge rating of 25kA.
  • They conform to the standard IEC 61643-11.

• CH SRF Class II - DC: These fuses are designed for 8/20 μsec lighting surge pulses.
  • They have a rated voltage of 1000V d.c..
  • They have a breaking capacity of 1000A d.c..
  • They are designed for typical DC applications such as PV Photovoltaic, battery supply and rectifiers.
  • They can withstand a sequence of minimum 15 shots of surge current.

Application

• • CH SRF class II: These fuses are intended for installation in series with TVSS devices and do not normally carry current, except for the periodic random surges caused by TVSS breakdown during normal operation.
  • CH SRF 25kA class I: These fuses are intended for installation in series with TVSS devices and do not normally carry current, except for the periodic random surges caused by TVSS breakdown during normal operation.
  • CH SRF class II - DC: Use in typical DC applilcation: PV Photovoltaic, battery supply, rectifier These fuses are intended for installation in series with TVSS devices and do not normally carry current, except for the periodic random surges caused by TVSS breakdown during normal operation.
