Puslaidininkinės relės

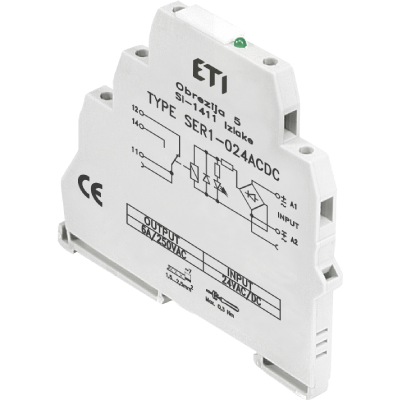

ETI offers SER1 (Electromechanical) and SSR1 (Solid State) series of ultra-slim interface relays. With a compact width of just 6.2 mm, these relays are designed for high-density mounting in space-constrained applications, without compromising on performance and reliability. Ideal for automation, control, and interface applications.

Key Features and Benefits:

• Maximize Space: The 6.2 mm slim design allows for significant space savings in control cabinets and terminal blocks.
• Versatile Options: Choose between the SER1 electromechanical relay with a 1 CO contact for general-purpose switching or the SSR1 solid-state relay with a 1 NO contact (Triac output) for high-speed, silent switching.
• Easy Installation: Designed for direct mounting on 35 mm DIN rails according to PN-EN 60715.
• Simplified Wiring: Utilize the SR-TERMINAL interconnection strip to easily bridge common input or output signals, reducing wiring complexity.
• Visual Status: Integrated green LED indicator provides immediate visual confirmation of the relay's operational status.
• Robust Performance (SER1): Reliable switching with a contact material of AgSnO2, capable of handling up to 6 A / 250 V AC. High electrical and mechanical life.
• Solid-State Reliability (SSR1): Offers the benefits of solid-state switching, including high switching frequency, no contact bounce, and silent operation, rated for 1,2 A / 400 V AC.
• Wide Range of Input Voltages: Available with 24 V AC/DC and 230 V AC/DC rated coil voltages.
• Secure Connections: Designed for reliable cable connections with a maximum cross-section of 2.5 mm² and a tightening torque of 0.3 Nm
