Priedai vertikaliems NH saugikliu kirtikliams

Accessories for strip type fuse disconnectors NH include busbar connections, protection covers, busbar covers, busbar supports, mounting adapter and various cable terminal types depending on product series.

Accessories for ETI Series VL size 00, 1, 2, 3

ETI provides a range of accessories for the VL series to enhance functionality and safety, including:

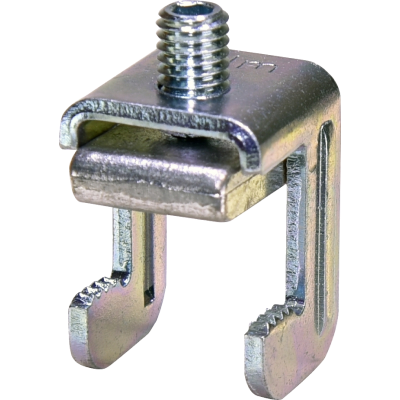

• Busbar Connections (KS Series): These connections enable direct contacting of the fuse rails to busbars without the need for drilling, simplifying installation.
• Protection Covers: Terminal compartments and terminal covers provide a probe-safe frontal protective covering for the terminal compartment, preventing accidental contact with live parts.
• Busbar Covers (PZ Series): Available in different widths and mounting options, these covers (fixed with M8 or M12 thread) provide insulation and protection for busbars.
• Busbar Supports (POP Series): These 3-pole supports are designed to fix flat bars at specific distances (100mm and 185mm), ensuring correct alignment and support for the busbar system.
• Protection Coverings (ZPL, ZP POP Series): These coverings offer an additional layer of insulation for contact connections and busbar supports, further enhancing safety.

The "Omega" contact (short-circuit current 80 kA) is available upon request.

Accessories for ETI Series VL00 EK

The following accessories are available for the VL00/100 EK fuse-rail series:

• PRS-SL/VL EK (Protection cover for connection terminals): This accessory is needed for additional protection covering when using the mounting adapter RA-…
• RA-1 100/185 (Mounting adapter for 185mm busbar, single): This adapter is used to mount a single SL00/100 EK or VL00/100 EK fuse rail on a 185mm busbar.
• RA-2 100/185 (Mounting adapter for 185mm busbar, double): This adapter allows for mounting two SL00/100 EK or VL00/100 EK fuse rails on a 185mm busbar at the same time.

In addition to these adapters, the VL00/100 EK series also offers various cable terminal types that can be ordered with the product:

• M8: Screw type M8x12 with a tightening torque of 12-15 Nm.
• BT00 10-70: This connection type must be ordered with the product and cannot be exchanged later. It has a clamping cross-section of 10-70 mm2 Al/Cu.
• OS00 6-50: Screw type M6 with a tightening torque of 4.5 Nm. Clamping cross-section is (6-50) mm2 Cu.
• P00 10-70: 2x(M5x14) screws with a tightening torque of 2.6 Nm. Clamping cross-section is (10-70) mm2 Al/Cu.
• P002 50: 2x(M5x25), 2x(M5x40) screws with a tightening torque of 4.5 Nm. Clamping cross-section is 2x50 mm2 Al/Cu.
