1. Accessories ETIMAT 6 MCBs series

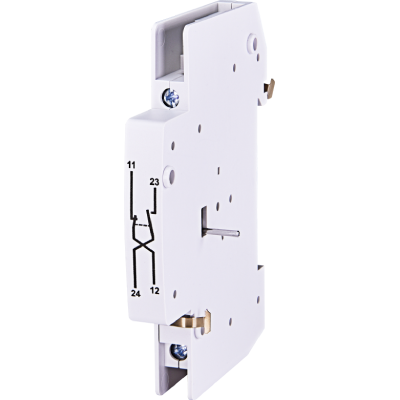

Auxiliary Switch (PS ETIMAT):

• Used for remote signaling of the MCB's state (ON or OFF).
• Can be fixed at the time of installation or added later.
• External dimensions comply with the MCB, with a built-in width of 0.5 module (9 mm).

Type Codes available:

• PS ETIMAT 10 - MD 002159031: NO + NC contacts.
• PS ETIMAT 10 - M 002159032: 1 x NC contact.
• PS ETIMAT 10 - D 002159033: 1 x NO contact

Technical Data:

• Terminals: 1-4mm².
• Terminal screw: M3 (PH1).
• Terminal torque: max 0.5Nm.
• Conditional short-circuit current: 1 kA with fuse-link 20 A.

PS ETIMAT is an auxiliary switch designed only for the ETIMAT 6 series and for built-in SV switches rated up to 40 A.

Shunt Trip Release (DA ETIMAT):

• Used for remote tripping of the MCB.
• Fixed to the right side of the MCB.
• Dimensions correspond to those of MCB ETIMAT.

Type Codes available:

• DA ETIMAT 10 230 V AC/DC 002159301.
• DA ETIMAT 10 48 V AC/DC 002159311.
• DA ETIMAT 10 24V AC/DC 002159312.

Technical Data:

• Nominal voltage: 24V AC/DC, 48V AC/DC, 230V AC/DC 50/60Hz.
• Max. inrush current: 3.6 A.
• Terminals: 1-25mm².
• Terminal Screw: M5 (Pozidrive PZ2).
• Terminal torque: max 3Nm.
• Build-in width: 18mm.

DA ETIMAT is a shunt trip release designed only for the ETIMAT 6 series and for built-in SV switches rated up to 40 A.

Sealing Piece ETIMAT:

• Provides sealing possibility in ON or OFF position.

Marking Labels:

• All ETIMAT 6 MCBs offer enough space for marking labels for easy identification.

2. Accessories for ETIMAT P6 and ETIMAT P10(/R) MCBs series

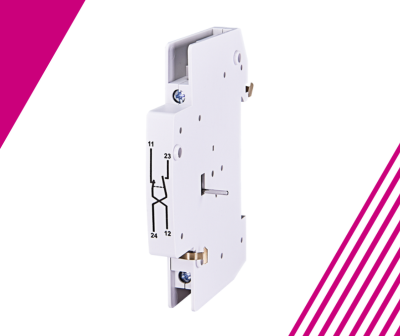

Auxiliary / Signal Switch (PS/SS ETIMAT P6/P10):

• Designed for remote signaling of the MCB's status.
• Attaches to the left side of the MCB.
• Can be fixed initially or added later.
• External dimensions are consistent with the MCB, with a built-in width of 0.5 module (9 mm).
• Clamps are safe to touch.
• Up to three PS/SS can be fitted to a single MCB using special connection springs.

WARNING: Do not install three auxiliary/signal switches on a single-pole MCB.

Technical Data:

• Rated voltage: 230V AC/DC, 110V DC.
• Rated frequency: 50/60Hz, DC.
• Index of protection: IP 20 (IP 40).
• Terminal capacity: 1,5mm².
• Terminal Screw: M3 PH1.
• Terminal torque: max. 0.5Nm.
• Contacts: 1x NC , 1x NC/NO.
• Connection Springs are available for installing two or three PS/SS switches.

Shunt Trip Release (DA ETIMAT P6/P10):

• Used for remote tripping of the MCB.

Type Codes available:

• DA ETIMAT P6/P10 12-60V AC/DC 001908411.
• DA ETIMAT P6/P10 110-250V AC/DC 001908412.
• DA ETIMAT P10/R 12-60V AC/DC 001908413.
• DA ETIMAT P10/R 110-250V AC/DC 001908414.

3. Accessories for ETIMAT 10 MCBs (80 - 125A) series

These higher current MCBs also have dedicated accessories.

Auxiliary Switch (PSM 80/125):

• Contacts: 1x a-contact, 1x b-contact.
• Rated thermal current Ith: 8 A.
• Utilization category AC-13: 6 A / AC13 (250 V AC).
• Utilization category DC-13: 2 A/110 V DC; 0,5 A/230 V DC.

Shunt Trip Release (DA ETIMAT 80/125):

• Type Codes available:
• DA ETIMAT 80/125 12-60V AC/DC 002159320.
• DA ETIMAT 80/125 110-415V 002159321.
• Operating voltage range: 12 V...60 V AC / DC; 110 V...415 V AC / 110 V...230 V DC.

4. General ETIMAT Accessories

These accessories are compatible with various ETIMAT series MCBs.

ETIMAT Terminal Cover:

Provides better protection of terminals against touching the parts under voltage.

Locking Device:

• Allows locking the handle in the "ON/OFF" position for safety during maintenance or to prevent unauthorized operation.
