Pramoninis paskirstymo skydeliai EDS

The EDS 4 series offers compact and versatile power distribution solutions with an IP44 rating, suitable for a wide range of applications.

• EDS 4m (Mini): The most compact model, equipped with two Schuko sockets and one 16A or 32A 5P socket.
• EDS 4: A slightly larger model featuring two Schuko sockets and two 16A or 32A 5P sockets. A mixed-current version (16/32A) is also available.
• EDS 4H (with Handle): Offers the same socket configurations as the EDS 4 but includes a convenient carrying handle for enhanced portability.
  Note: On 16/32A mixed models, the 32A/5P socket is protected by a 16A MCB.

When greater protection against dust and water splashes is required, the EDS 5 series provides a robust IP54-rated enclosure.

• Configurations: Available with two Schuko sockets and one 16A or 32A 5P socket, protected by two C16/1 and one C16/3 or C32/3 circuit breaker respectively.

This specialized IP54-rated box is designed for applications requiring local disconnection and control.

• Features: It includes one of each socket type (16A/5P, 32A/5P, and Schuko 250V) and is fitted with a cam switch for manual control. The cam switch has a rated insulation voltage (Ui) of 690V.

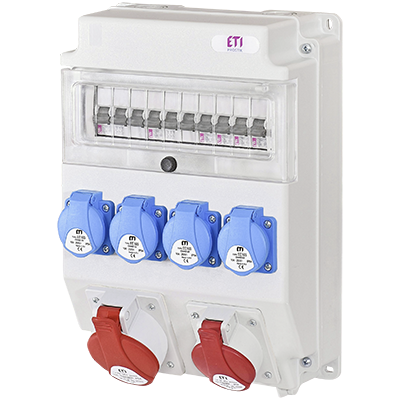

The EDS 8 series provides versatile configurations in an IP44 enclosure, with options for an integrated switch, RCD protection, and a carrying handle.

• Standard Models (EDS 8 EDS 8H): Available with a variety of socket layouts, including a version with six 16A/5P sockets. These models are equipped with a switch.
• RCD Models (EDS 8 RCD EDS 8H RCD): For enhanced personnel safety, these versions include a 3-phase Residual Current Device (RCD) in addition to the standard circuit breakers and switch.
• "H" Models: All EDS 8 configurations are available with an integrated handle for portability (EDS 8H).

The EDS 11 is our largest and most versatile distribution box, offering the highest number of sockets in a rugged IP54 enclosure. It is ideal for complex setups requiring multiple power outlets.

• High-Density Configurations: Can be equipped with up to seven Schuko sockets or various combinations of 16A/5P, 32A/5P, and Schuko sockets.
• Advanced Protection: All EDS 11 models are available with an integrated switch. RCD versions (EDS 11 RCD) add a 3-phase RCD for maximum safety.
