Paneliniai kirtikliai

Rotary cam switches are versatile and reliable switching devices used to control the flow of electricity in various industrial and commercial applications. Designed for durability and precision, they allow for manual switching between different circuit positions, making them ideal for functions such as motor control, changeover switching, and instrumentation. With a compact design and a wide range of configurations, rotary cam switches offer flexibility, easy installation, and dependable performance in demanding environments.

The CS series offers a wide range of rotary cam switches to suit various applications. The series includes:

• ON-OFF switches: These switches provide basic on-off functionality with a 60° switching angle.
• Multistep Switches: These switches provide multiple switching positions with a 60° switching angle.
• Changeover Switches: These switches provide changeover functionality between two or more circuits with a 60° switching angle.
• Voltmeter Switches: These switches are designed for use in voltmeter circuits and are available in 3-line and 3-phase configurations.
• Ammeter Switches: These switches are designed for use in ammeter circuits and are available with 1-pole 3-current or 2-pole 3-current configurations, both with a transformer.
• Start and Run Switches: Designed for single-phase motors with 0-start-1 functionality.
• Star-Delta Switches: Used for starting three-phase motors with 0-star-delta operation.
• Motor Reversing Switches: Allows for reversing the direction of a motor with 1-0-2 or L-0-P configurations.
• General Emergency ON-OFF switches (version LK): These switches provide an electrical separation between the power supply and electrical equipment for emergency situations.
  • Features:
    • Red control handle and yellow plate behind, as per standards.
    • Lockable in the open position ("0") with up to three padlocks.

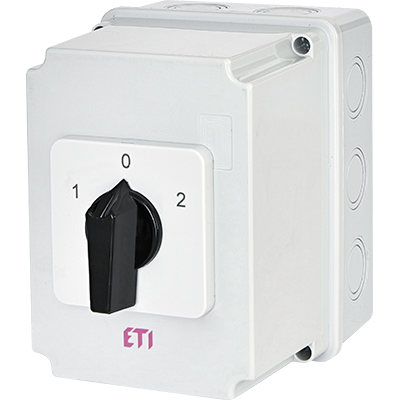

The CS series also includes rotary cam switches housed in insulated enclosures with various degrees of protection:

• IP65: PN, PNG, and PNG LK housings
• IP55: PN1 and PN2 housings
• IP54: PN3 and PN4 housings

The enclosures are grey (RAL 7035). The series includes:

• ON-OFF switches: with a 60° switching angle.
• Changeover switches: with a 60° switching angle.
• Multistep switches: with a 60° switching angle.
• Voltmeter switches.
• Motor Reversing Switches
• Star-Delta Switches
• General Emergency ON-OFF switches (version LK)

CS Series for DIN Rail Mounting

The CS series offers rotary cam switches designed for DIN rail mounting.
