Contactors for Capacitor Banks are designed for safe and efficient switching in power factor correction systems. Unlike standard models, they can handle the high inrush currents generated when capacitors are energized by using pre-charge resistors. This design protects system components, extends capacitor lifespan, and reduces network distortions.

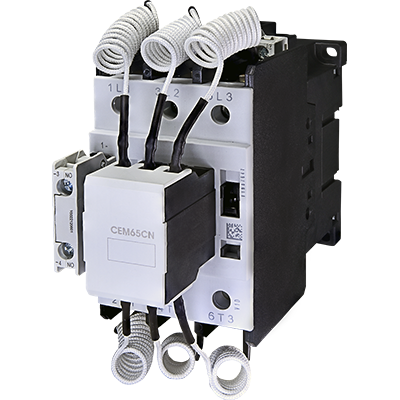

ETI's CEM_CN Series Capacitor Duty Contactors
The CEM_CN series is specifically designed for capacitor switching in power factor correction applications, utilizing the AC-6b utilization category. These contactors are built with pre-charge resistors and an early-make contact block to limit inrush current.
Operating Principle:
When a capacitor bank is switched on, the capacitors are initially uncharged, which causes them to act as a short circuit for a very short period. This leads to a high inrush current that can reach up to 100 times the rated current, significantly reducing the lifespan of the capacitor. The CEM_CN contactor is designed with damping resistors which limit this high inrush current. The early-make contact block is activated before the main contacts to limit the inrush current. The damping resistors are then switched off after 5 milliseconds, leaving only the capacitors in parallel with the inductive load.
Accessories:
Installation and Usage:
Why Use Contactors for Capacitor Banks?
