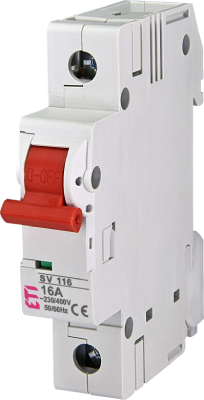

Jungikliai SV 16-125A

Introduction

ETI product serie

The EVE Build-in Switch SV series offers a range of options suitable for various applications:

• Rated Current: Available in a range of rated currents from 16A to 125A to meet different load requirements.
• Number of Poles: Offered in 1-pole, 2-pole, 3-pole, and 4-pole configurations to accommodate single-phase and three-phase systems.
• Rated Operational Voltage (Ue): Supports a range of voltages, including 230/400V AC for single-pole switches and 400V AC for 2-pole, 3-pole, and 4-pole switches.
• Utilization Category: Complies with IEC/EN 60947-3 standards, meeting AC-22B and AC-23B utilization categories for different switching applications.
• Terminal Capacity: Accepts wire sizes from 1-25mm2 for switches with In ≤ 63A and 1-50mm2 for switches with In ≥ 63A, ensuring secure connections.
• Operating Temperature: Functions reliably in temperatures ranging from -25°C to +55°C, suitable for most environments.

The EVE Build-in Switch SV series provides a robust and reliable switching solution for a wide range of applications. Its features, including clear contact status indication, sealing capability, and compliance with industry standards, make it a versatile choice for electrical installations.

Application

They are often used as main switches in distribution boxes, especially in residential settings, or as switches for controlling individual circuits. They can also replace cam switches, offering several advantages.

Advantages of Built-in Switches:

• Robust and simple construction, leading to more reliable operation.
• Clear indication of contact status (on or off).
• Ability to be sealed in either the ON or OFF position.
• Can be used with an additional label to mark the specific circuit they control.
• Switches with a rated current (In) less than or equal to 63A feature double switching OFF for enhanced safety.
